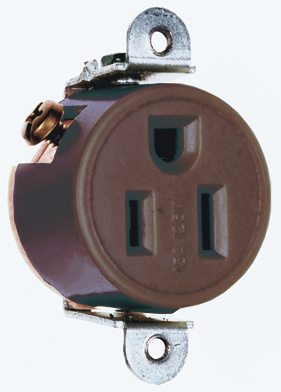

15A 125V Short Strap Spec-Grade Single Receptacle, Side Wire, Brown

Item ID #5258B

Pass & Seymour

15A 125V Short Strap Spec-Grade Single Receptacle, Side Wire, Brown

Name: 15A 125V Short Strap Spec-Grade Single Receptacle, Side Wire, Brown
Brand: Pass & Seymour
SKU: 5258B
Price: 21.94 CAD
Availability: OutOfStock

Item ID #5258B

Specifications

See all specifications

Depth :	1.0 in
Special Features :	Short Strap: 1.750" screw spacing. Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Side wire capability. One-piece brass triple-wire power contacts for lasting retention.
Height :	1.49 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Short Strap Spec Grade Single Receptacle, Side Wire, 15A 125V

Recommended tools

Specifications


Depth :	1.0 in
Special Features :	Short Strap: 1.750" screw spacing. Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Side wire capability. One-piece brass triple-wire power contacts for lasting retention.
Height :	1.49 in
Country of Origin :	Mexico
Color :	Brown
Product Line :	Pass & Seymour
Standard :	UL498
Amperage :	15.0 A
Voltage :	125.0 V
Number of Wires :	3.0
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Number of Receptacles :	1.0
Standard :	CSA C22.2 No. 42
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Application Sector :	Commercial
Connection Location :	Side Only
NEMA Configuration Code :	5-15R
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Features :	Heavy Duty Steel Mounting Strap
Operating Temperature :	-40°-60°C
Dielectric Strength :	Withstands 2000V minimum
Environmental Conditions :	Flammability: UL94 V2
