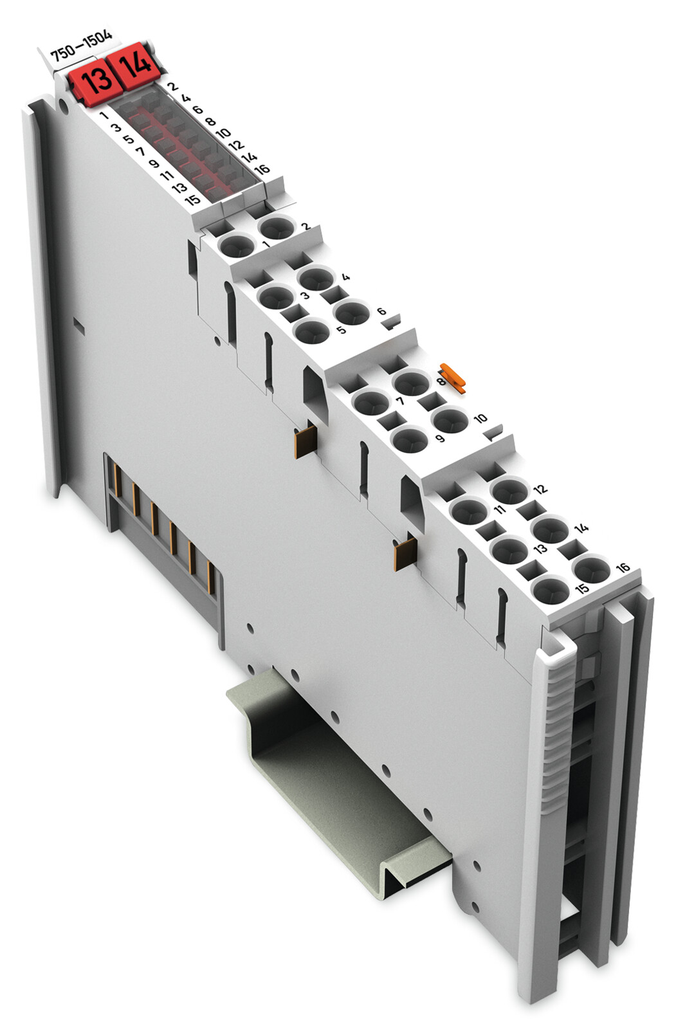

16-channel digital output; 24 VDC; 0.5 A

Item ID #750/1504

WAGO

16-channel digital output; 24 VDC; 0.5 A

Name: 16-channel digital output; 24 VDC; 0.5 A
Brand: WAGO
SKU: 750/1504
Price: 310.20 CAD
Availability: InStock

Item ID #750/1504

Specifications

See all specifications

Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

16 channel digitaloutpout 24vdc 0.5a light

Recommended tools

Environmental Requirements


Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20
Pollution degree :	2 per IEC 61131-2
Operating altitude :	0 … 2000 m / 0 … 6562 ft
Mounting position :	Horizontal (standing/lying); vertical
Relative humidity (without condensation) :	95 %
Vibration resistance :	4g per IEC 60068-2-6
Shock resistance :	15g per IEC 60068-2-27
EMC immunity to interference :	Per EN 61000-6-2, marine applications
EMC emission of interference :	Per EN 61000-6-3, marine applications
Exposure to pollutants :	Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 % :	10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % :	25 ppm

Description
Resources
Specifications

16-channel digital output; 24 VDC; 0.5 A

Item ID #750/1504

WAGO

16-channel digital output; 24 VDC; 0.5 A

Item ID #750/1504

16-channel digital output; 24 VDC; 0.5 A

Specifications

See all specifications

Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

16 channel digitaloutpout 24vdc 0.5a light

Recommended tools

Environmental Requirements


Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20
Pollution degree :	2 per IEC 61131-2
Operating altitude :	0 … 2000 m / 0 … 6562 ft
Mounting position :	Horizontal (standing/lying); vertical
Relative humidity (without condensation) :	95 %
Vibration resistance :	4g per IEC 60068-2-6
Shock resistance :	15g per IEC 60068-2-27
EMC immunity to interference :	Per EN 61000-6-2, marine applications
EMC emission of interference :	Per EN 61000-6-3, marine applications
Exposure to pollutants :	Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 % :	10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % :	25 ppm


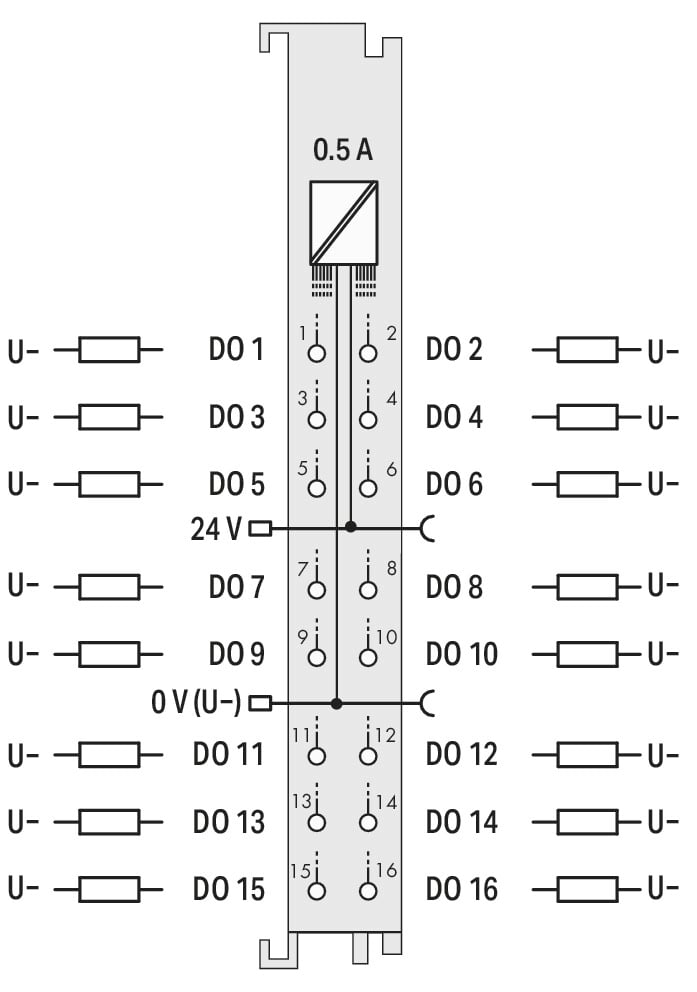

Connection technology: inputs/outputs :	16 x Push-in CAGE CLAMP®
Connection type 1 :	Inputs/outputs
Solid conductor :	0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor :	0.25 … 1.5 mm² / 22 … 16 AWG
Strip length :	8 … 9 mm / 0.31 … 0.35 inches
Conductor type (1) :	F-st
Conductor type (2) :	S
Conductor type 1 :	Fine-stranded
Conductor type 2 :	Solid


Width :	12 mm / 0.472 inches
Height :	100 mm / 3.937 inches
Depth :	69 mm / 2.717 inches
Depth from upper-edge of DIN-rail :	61.8 mm / 2.433 inches


Color :	Light gray
Housing material :	Polycarbonate; polyamide 6.6
Fire load :	1.058 MJ
Weight :	50.000 g
Conformity marking :	CE


Number of digital outputs :	16
Total number of channels (module) :	16
Signal type :	Digital
Signal type (voltage) :	24 VDC
Actuator connection :	16 x (1-wire)
Output characteristic :	High-side switching
Output current per channel :	0.5 A
Output current :	Short-circuit-protected
Switching frequency (max.) :	1 kHz
Load type :	Resistive, inductive, lamp load
Output data width (internal) max. :	16 bits
Supply voltage (system) :	5 VDC; via data contacts
Current consumption (5 V system supply) :	40 mA
Supply voltage (field) :	24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load) :	29 mA
Isolation :	500 V system/field
Indicators :	LED (1-16) green: Status DO 1 … DO 16
Number of incoming power jumper contacts :	2
Number of outgoing power jumper contacts :	2
Current carrying capacity (power jumper contacts) :	10 A


Mounting type :	DIN-35 rail
Pluggable connector :	Fixed


Packaging type :	Box
Country of origin :	DE
GTIN :	4045454905576
Customs tariff number :	85371098990
