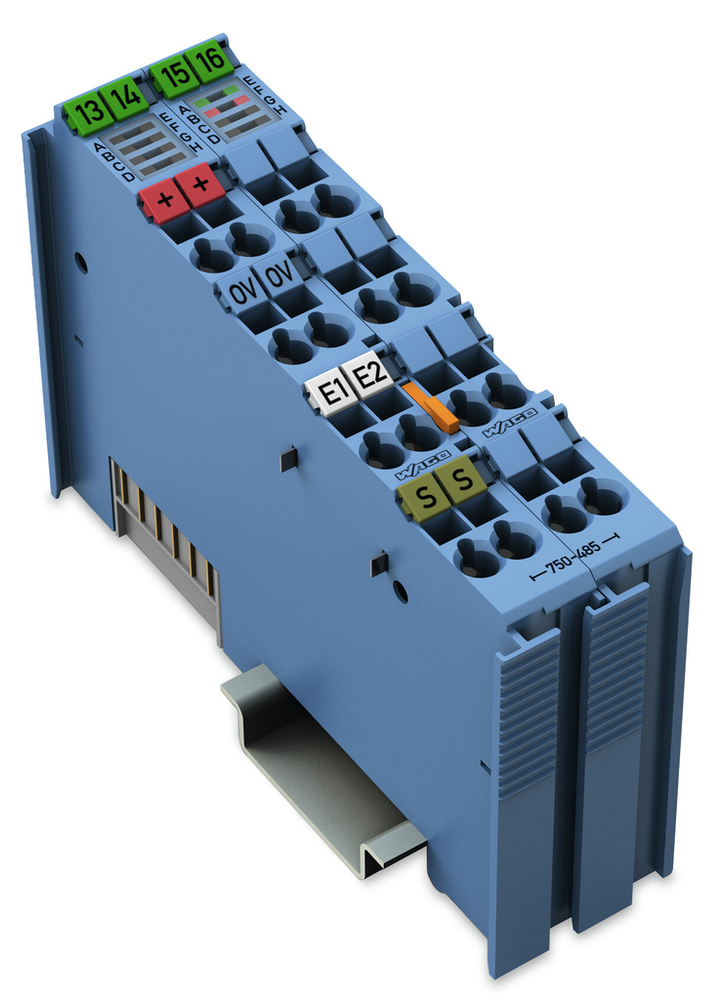

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe

Item ID #750/485

WAGO

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe

Name: 2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe
Brand: WAGO
SKU: 750/485
Price: 1626.92 CAD
Availability: OutOfStock

Item ID #750/485

Specifications

See all specifications

Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe; blue

Recommended tools

Environmental Requirements


Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20
Pollution degree :	2 per IEC 61131-2
Operating altitude :	0 … 2000 m / 0 … 6562 ft
Mounting position :	Horizontal (standing/lying); vertical
Relative humidity (without condensation) :	95 %
Vibration resistance :	4g per IEC 60068-2-6
Shock resistance :	15g per IEC 60068-2-27
EMC immunity to interference :	Per EN 61000-6-2, marine applications
EMC emission of interference :	Per EN 61000-6-3, marine applications
Exposure to pollutants :	Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 % :	10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % :	25 ppm

Description
Resources
Specifications

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe

Item ID #750/485

WAGO

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe

Item ID #750/485

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe

Specifications

See all specifications

Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

2-channel analog input; 4 … 20 mA; Single-ended; Intrinsically safe; blue

Recommended tools

Environmental Requirements


Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20
Pollution degree :	2 per IEC 61131-2
Operating altitude :	0 … 2000 m / 0 … 6562 ft
Mounting position :	Horizontal (standing/lying); vertical
Relative humidity (without condensation) :	95 %
Vibration resistance :	4g per IEC 60068-2-6
Shock resistance :	15g per IEC 60068-2-27
EMC immunity to interference :	Per EN 61000-6-2, marine applications
EMC emission of interference :	Per EN 61000-6-3, marine applications
Exposure to pollutants :	Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 % :	10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % :	25 ppm

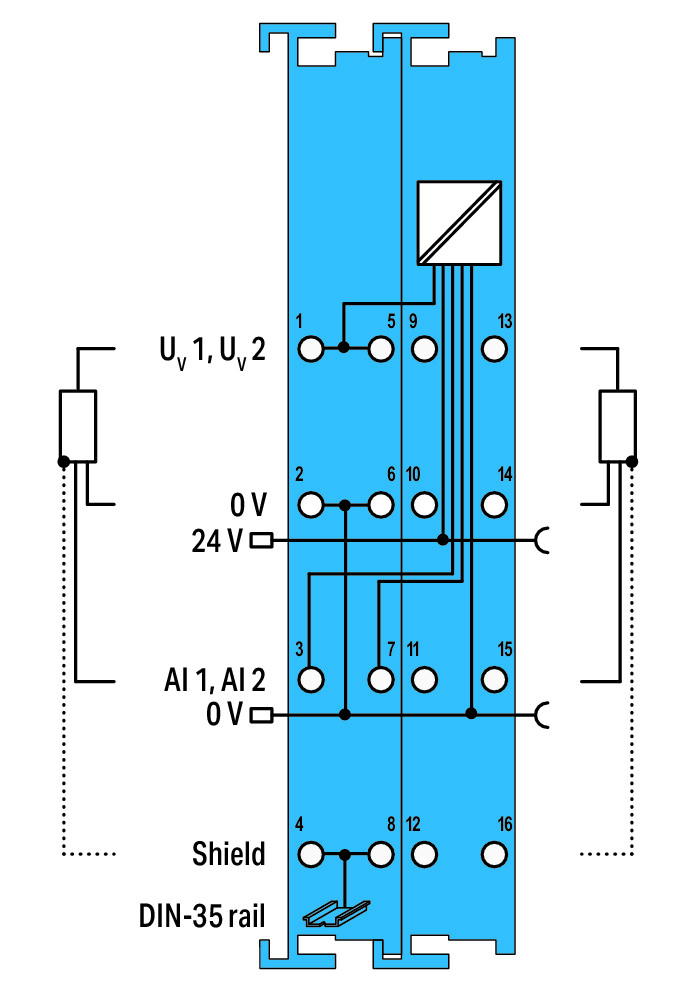

Connection technology: inputs/outputs :	16 x CAGE CLAMP®
Connection type 1 :	Inputs/outputs
Solid conductor :	0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor :	0.08 … 2.5 mm² / 28 … 14 AWG
Strip length :	8 … 9 mm / 0.31 … 0.35 inches


Width :	24 mm / 0.945 inches
Height :	100 mm / 3.937 inches
Depth :	67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail :	60.6 mm / 2.386 inches


Color :	Blue
Housing material :	Polycarbonate; polyamide 6.6
Fire load :	2.379 MJ
Weight :	97.647 g
Conformity marking :	CE


Number of analog inputs :	2
Total number of channels (module) :	2
Signal type :	Current
Signal type (current) :	4 … 20 mADC
Supply voltage (sensor) :	16 VDC; Transmitter supply UV at 20 mA
Sensor connection :	2 x (3-wire)
Signal characteristics :	Single-ended
Resolution [bit] :	12 bits
Input resistance (max.) :	100 Ω
Power consumption Pmax. :	1.3 W
Data width :	2 x 16-bit data; 2 x 8-bit control/status (optional)
Conversion time (typ.) :	2 ms
Measurement error (reference temperature) :	25 °C
Measurement error, deviation (max.) from the upper-range value :	0.2 %
Temperature error (max.) of the upper-range value :	0.01 %/K
Intrinsic safety Ex i :	Yes
Supply voltage (system) :	5 VDC; via data contacts
Current consumption (5 V system supply) :	31 mA
Supply voltage (field) :	24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load) :	11 mA
Power loss Pl :	0.75 W
Isolation :	300 VAC system/field
Indicators :	LED (A, E) green: Function AI 1, AI 2; LED (B, F) red: Error AI 1, AI 2
Number of incoming power jumper contacts :	2
Number of outgoing power jumper contacts :	2
Marking :	ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I


Packaging type :	Box
Country of origin :	DE
GTIN :	4045454725556
Customs tariff number :	85389099990


Ex standard :	EN IEC 60079-0, -7, -11
Safety-relevant data (circuit) :	Uo = 27.3 V; Io = 90 mA; Po = 0.61 W; linear characteristic curve
Reactances Ex ia IIC :	Lo = 5 mH; Co = 88 nF
Reactances Ex ia IIB :	Lo = 18 mH; Co = 680 nF
Reactances Ex ia IIA :	Lo = 40 mH; Co = 2.2 μF
Reactances Ex ia I :	Lo = 100 mH; Co = 3.5 µF
Reactances (note) :	Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo)
