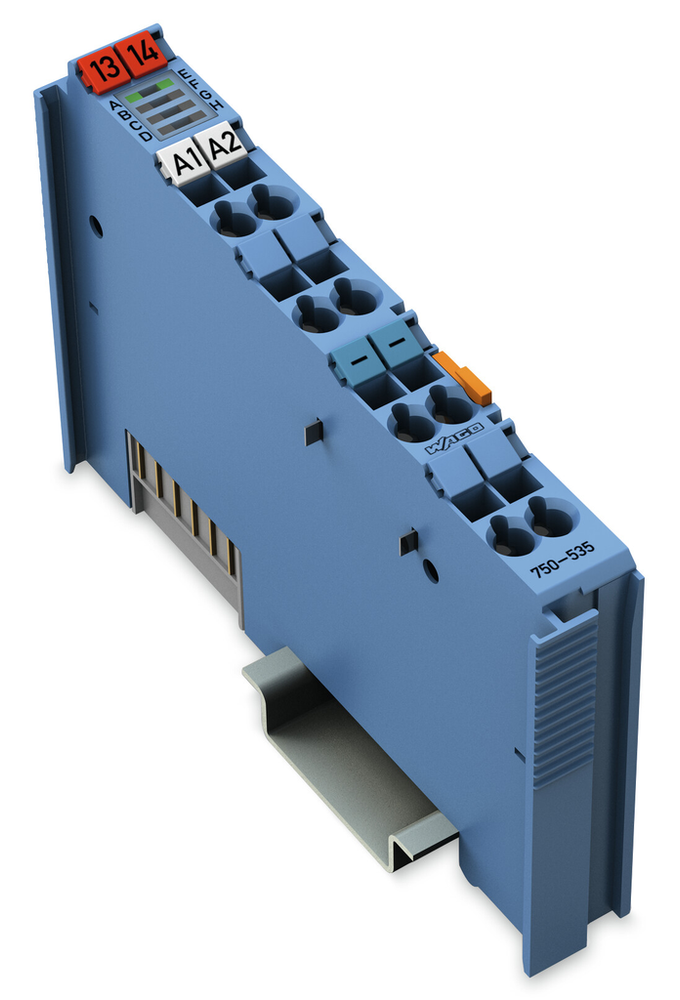

2-channel digital output; 24 VDC; Intrinsically safe

Item ID #750/535

WAGO

2-channel digital output; 24 VDC; Intrinsically safe

Name: 2-channel digital output; 24 VDC; Intrinsically safe
Brand: WAGO
SKU: 750/535
Price: 434.49 CAD
Availability: OutOfStock

Item ID #750/535

Specifications

See all specifications

Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

2-channel digital output; 24 VDC; Intrinsically safe; blue

Recommended tools

Environmental Requirements


Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20
Pollution degree :	2 per IEC 61131-2
Operating altitude :	0 … 2000 m / 0 … 6562 ft
Mounting position :	Horizontal (standing/lying); vertical
Relative humidity (without condensation) :	95 %
Vibration resistance :	4g per IEC 60068-2-6
Shock resistance :	15g per IEC 60068-2-27
EMC immunity to interference :	Per EN 61000-6-2, marine applications
EMC emission of interference :	Per EN 61000-6-3, marine applications
Exposure to pollutants :	Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 % :	10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % :	25 ppm

Description
Resources
Specifications

2-channel digital output; 24 VDC; Intrinsically safe

Item ID #750/535

WAGO

2-channel digital output; 24 VDC; Intrinsically safe

Item ID #750/535

2-channel digital output; 24 VDC; Intrinsically safe

Specifications

See all specifications

Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

2-channel digital output; 24 VDC; Intrinsically safe; blue

Recommended tools

Environmental Requirements


Ambient temperature (operation) :	0 … +55 °C
Ambient temperature (storage) :	-25 … +85 °C
Protection type :	IP20
Pollution degree :	2 per IEC 61131-2
Operating altitude :	0 … 2000 m / 0 … 6562 ft
Mounting position :	Horizontal (standing/lying); vertical
Relative humidity (without condensation) :	95 %
Vibration resistance :	4g per IEC 60068-2-6
Shock resistance :	15g per IEC 60068-2-27
EMC immunity to interference :	Per EN 61000-6-2, marine applications
EMC emission of interference :	Per EN 61000-6-3, marine applications
Exposure to pollutants :	Per IEC 60068-2-42 and IEC 60068-2-43
Permissible H2S contaminant concentration at a relative humidity 75 % :	10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % :	25 ppm


Connection technology: inputs/outputs :	8 x CAGE CLAMP®
Connection type 1 :	Inputs/outputs
Solid conductor :	0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor :	0.08 … 2.5 mm² / 28 … 14 AWG
Strip length :	8 … 9 mm / 0.31 … 0.35 inches


Width :	12 mm / 0.472 inches
Height :	100 mm / 3.937 inches
Depth :	67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail :	60.6 mm / 2.386 inches


Color :	Blue
Housing material :	Polycarbonate; polyamide 6.6
Fire load :	1.034 MJ
Weight :	50.600 g
Conformity marking :	CE


Number of digital outputs :	2
Total number of channels (module) :	2
Signal type :	Digital
Signal type (voltage) :	24 VDC

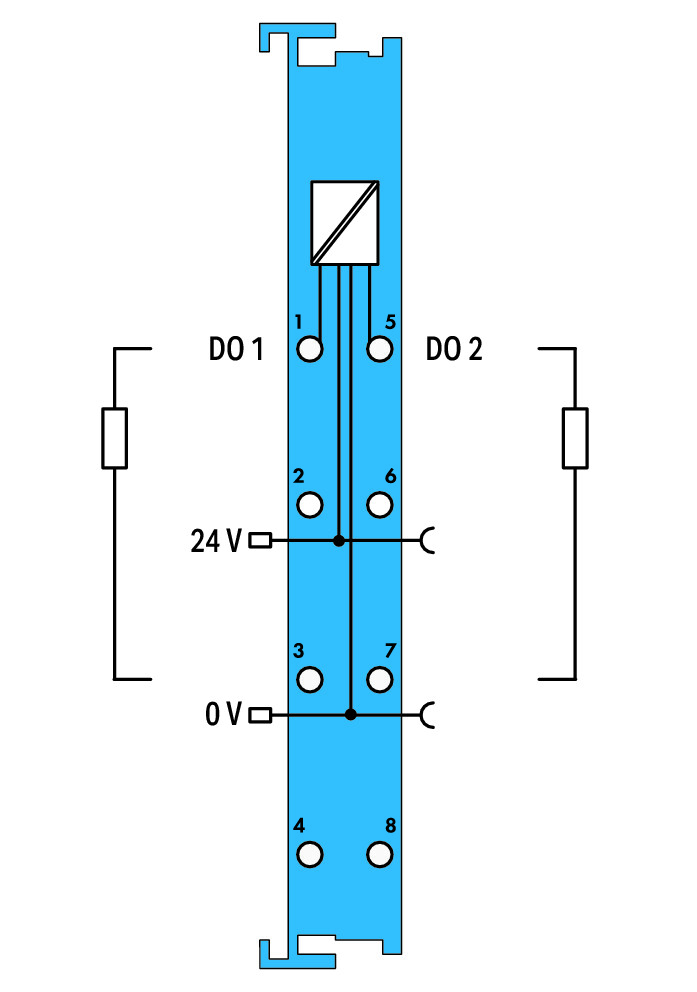

Actuator connection :	2 x (2-wire)
Output characteristic :	High-side switching
Switching frequency (max.) :	1 kHz
Load type :	Resistive, inductive, lamp load
Internal resistance Ri :	285 Ω
Power consumption Pmax. :	2.1 W (at 40 mA output current)
Output data width (internal) max. :	2 bits
Intrinsic safety Ex i :	Yes
Supply voltage (system) :	5 VDC; via data contacts
Current consumption (5 V system supply) :	7 mA
Supply voltage (field) :	24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load) :	8.5 mA
Power loss Pl :	1.1 W (at 40 mA output current)
Isolation :	300 VAC system/field
Indicators :	LED (A, E) green: Status DO 1, DO 2
Number of incoming power jumper contacts :	2
Number of outgoing power jumper contacts :	2
Current carrying capacity (power jumper contacts) :	1 A
Marking :	ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I


Packaging type :	Box
Country of origin :	DE
GTIN :	4045454725563
Customs tariff number :	85371098990


Ex standard :	EN IEC 60079-0, -7, -11
Safety-relevant data (circuit) :	Uo = 27.3 V; Io = 106 mA; Po = 723 mW; linear characteristic curve
Reactances Ex ia IIC :	Lo = 3 mH; Co = 88 nF
Reactances Ex ia IIB :	Lo = 12 mH; Co = 680 nF
Reactances Ex ia IIA :	Lo = 18 mH; Co = 2.2 μF
Reactances Ex ia I :	Lo = 20 mH; Co = 3.6 µF
Reactances (note) :	Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo)
