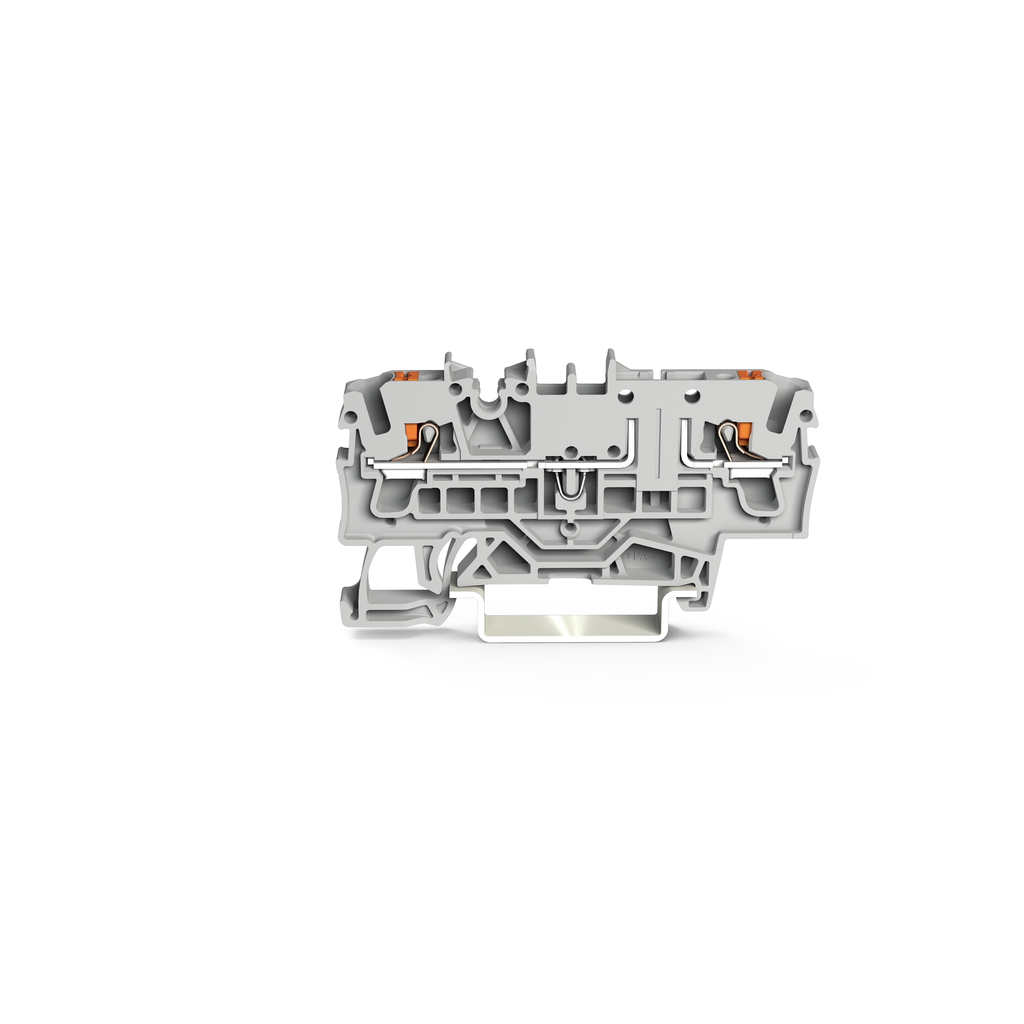

2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Item ID #2202/1661

WAGO

2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Name: 2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Brand: WAGO
SKU: 2202/1661
Price: 6.88 CAD
Availability: InStock

Item ID #2202/1661

Specifications

See all specifications

Ratings per :	IEC/EN 60947-7-1
Nominal voltage (III/3) :	400 V
Rated impulse voltage (III/3) :	6 kV

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Wago 5.2mm terminal block, single-level, 1x1 pole section, grey, 5.2mm², 2.5mm², push-in connector.

Recommended tools

Ratings Per Iec/En


Ratings per :	IEC/EN 60947-7-1
Nominal voltage (III/3) :	400 V
Rated impulse voltage (III/3) :	6 kV
Rated current :	16 A
Legend (ratings) :	(III / 3) ≙ Overvoltage category III / Pollution degree 3

Description
Resources
Specifications

2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Item ID #2202/1661

WAGO

2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Item ID #2202/1661

2-conductor carrier terminal block; with push-button; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Specifications

See all specifications

Ratings per :	IEC/EN 60947-7-1
Nominal voltage (III/3) :	400 V
Rated impulse voltage (III/3) :	6 kV

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Wago 5.2mm terminal block, single-level, 1x1 pole section, grey, 5.2mm², 2.5mm², push-in connector.

Recommended tools

Ratings Per Iec/En


Ratings per :	IEC/EN 60947-7-1
Nominal voltage (III/3) :	400 V
Rated impulse voltage (III/3) :	6 kV
Rated current :	16 A
Legend (ratings) :	(III / 3) ≙ Overvoltage category III / Pollution degree 3


Processing temperature :	-35 … +85 °C
Continuous operating temperature :	-60 … +105 °C

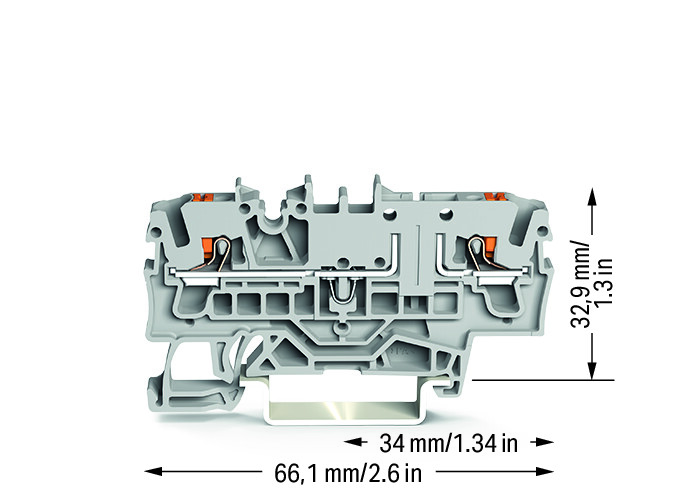

Width :	5.2 mm / 0.205 inches
Height :	66.1 mm / 2.602 inches
Depth from upper-edge of DIN-rail :	32.9 mm / 1.295 inches


Note (material data) :	<a href="https://www.wago.com/us/material-specifications" href="_blank">Information on material specifications can be found here</a>
Color :	Gray
Material group :	I
Insulation material :	Polyamide (PA66)
Flammability class per UL94 :	V0
Fire load :	0.016 MJ
Weight :	7.290 g


Mounting type :	DIN-35 rail
Marking level :	Center/side marking


Packaging type :	Box
Country of origin :	DE
GTIN :	4055143907729
Customs tariff number :	85369010000


Reference hazardous areas :	See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Ratings per :	ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)
Rated voltage EN (Ex e II) :	440 V
Rated current (Ex e II) :	17 A


Approvals per :	CSA 22.2 No 158
Rated voltage CSA (Use Group B) :	300 V
Rated current CSA (Use Group B) :	15 A
Rated voltage CSA (Use Group C) :	300 V
Rated current CSA (Use Group C) :	15 A


Power loss, per pole (potential) :	0.3405 W
Resistance value for specified, current-dependent power loss :	0.00133 Ω


Connection technology :	Push-in CAGE CLAMP®
Actuation type :	Push-button
Connectable conductor materials :	Copper
Nominal cross-section :	2.5 mm²
Solid conductor :	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination :	0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor :	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule :	0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination :	1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section) :	Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length :	10 … 12 mm / 0.39 … 0.47 inches
Wiring direction :	Front-entry wiring


Approvals per :	UL 1059
Rated voltage UL (Use Group B) :	300 V
Rated current UL (Use Group B) :	15 A
Rated voltage UL (Use Group C) :	300 V
Rated current UL (Use Group C) :	15 A
