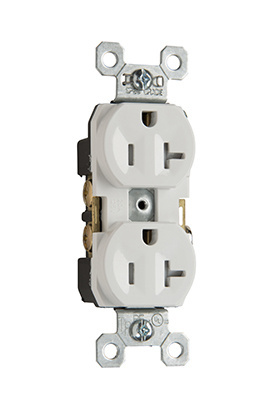

20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle, White

Item ID #TR20W

Pass & Seymour

20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle, White

Name: 20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle, White
Brand: Pass & Seymour
SKU: TR20W
Price: 9.54 CAD
Availability: InStock

Item ID #TR20W

Specifications

See all specifications

Depth :	0.93 in
Amperage :	20.0 A
Height :	3.28 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Tamper-Resistant Commercial Grade Receptacle, 20A, 125V. Available in 6 colors. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Recommended tools

Specifications


Depth :	0.93 in
Amperage :	20.0 A
Height :	3.28 in
Standard :	UL 498
Width :	1.37 in
Voltage :	125.0 V
Country of Origin :	Mexico
Mounting Type :	Box
Number of Wires :	3.0
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Frequency Rating :	60 Hz
Wall Plate Included :	No
Is Tamper-Resistant :	Yes
Number of Receptacles :	2.0
Number of Poles :	Double Pole
Outlet Type :	Tamper-Resistant
Application Sector :	Commercial
Connection Location :	Side Only
NEMA Configuration Code :	5-20R
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Features :	Single Piece Plated Steel Mounting Strap
Color :	White
Finish :	Matte
Product Line :	Pass & Seymour
