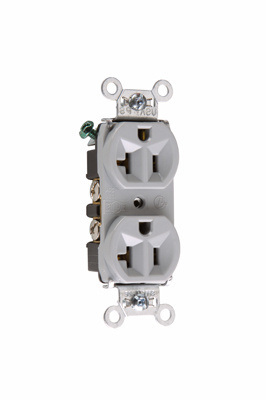

20A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Gray

Item ID #5362GRY

Pass & Seymour

20A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Gray

Name: 20A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Gray
Brand: Pass & Seymour
SKU: 5362GRY
Price: 28.82 CAD
Availability: OutOfStock

Item ID #5362GRY

Specifications

See all specifications

Depth :	0.78 in
Height :	2.635 in
Color :	Gray

Available quantity000

Your price

$0.00 / Each

Add to template

Specifications


Depth :	0.78 in
Height :	2.635 in
Color :	Gray
Finish :	Matte
Width :	1.32 in
Country of Origin :	Mexico
Product Line :	Pass & Seymour
Standard :	UL498
Amperage :	20.0 A
Voltage :	125.0 V
Standard :	FEDSPEC
Number of Wires :	3.0
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Number of Receptacles :	2.0
Standard :	CSA C22.2 No. 42
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Application Sector :	Commercial
NEMA Configuration Code :	5-20R
Connection Location :	Back and Side
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Dielectric Strength :	Withstands 2000V minimum
Wire Connection Type :	Internal Pressure Plates
Features :	Single Piece Plated Steel Mounting Strap
