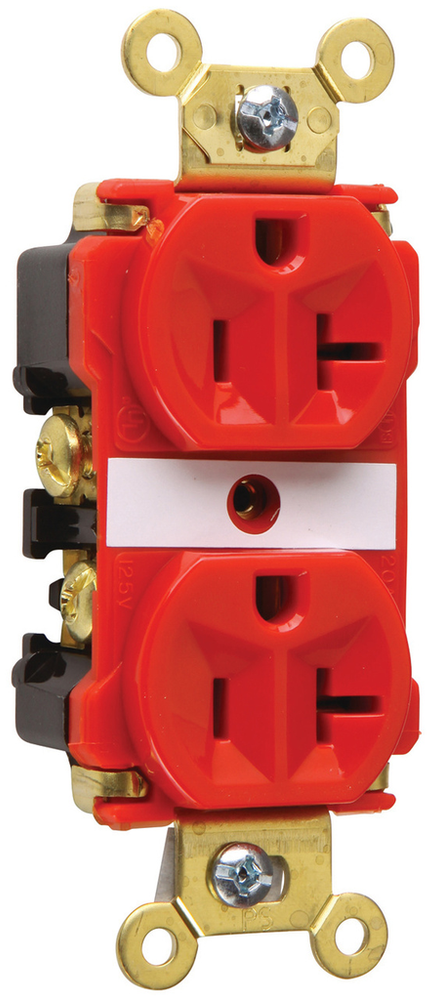

20A 125V Industrial Extra Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Red

Item ID #5362ARED

Pass & Seymour

20A 125V Industrial Extra Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Red

Name: 20A 125V Industrial Extra Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Red
Brand: Pass & Seymour
SKU: 5362ARED
Price: 43.94 CAD
Availability: OutOfStock

Item ID #5362ARED

Specifications

See all specifications

Depth :	0.9 in
Color :	Red
Height :	2.75 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V

Recommended tools

Specifications


Depth :	0.9 in
Color :	Red
Height :	2.75 in
Product Line :	Pass & Seymour
Width :	1.625 in
Country of Origin :	Mexico
Amperage :	20.0 A
Voltage :	125.0 V
Standard :	FEDSPEC
Number of Wires :	3.0
Standard :	cULus UL498
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Number of Receptacles :	2.0
Standard :	CSA C22.2 No. 42
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Application Sector :	Commercial
Application Sector :	Industrial
Features :	Brass Mounting Strap
NEMA Configuration Code :	5-20R
Connection Location :	Back and Side
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Dielectric Strength :	Withstands 2000V minimum
Wire Connection Type :	Internal Pressure Plates
Environmental Conditions :	Flammability: UL94 V2
Special Features :	One-piece brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and back body. Oversized #10 deep tri-drive head brass terminal and ground screws. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Line terminals accept #14 – #10 AWG stranded or solid copper clad conductors. Auto-ground clip assures positive ground.
