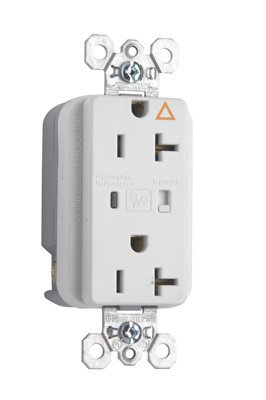

20A 125V Isolated Ground Surge Protective Duplex Receptacle, Back and Side Wire, White

Item ID #IG5362WSP

Pass & Seymour

20A 125V Isolated Ground Surge Protective Duplex Receptacle, Back and Side Wire, White

Name: 20A 125V Isolated Ground Surge Protective Duplex Receptacle, Back and Side Wire, White
Brand: Pass & Seymour
SKU: IG5362WSP
Price: 148.40 CAD
Availability: OutOfStock

Item ID #IG5362WSP

Specifications

See all specifications

Depth :	1.225 in
Color :	White
Height :	2.8 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 20A, 125V

Recommended tools

Specifications


Depth :	1.225 in
Color :	White
Height :	2.8 in
Finish :	Matte
Width :	1.75 in
Product Line :	Pass & Seymour
Country of Origin :	Mexico
Special Features :	IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
Amperage :	20.0 A
Voltage :	125.0 V
Number of Wires :	3.0
Standard :	cUL UL1449
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Number of Receptacles :	2.0
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Outlet Type :	Isolated Ground
Outlet Type :	Surge Protected
Application Sector :	Commercial
NEMA Configuration Code :	5-20R
Connection Location :	Back and Side
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Wire Connection Type :	Internal Pressure Plates
Environmental Conditions :	Flammability: UL94 V2
Features :	Single Piece Plated Steel Mounting Strap
Standard :	UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587)
Standard :	ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
