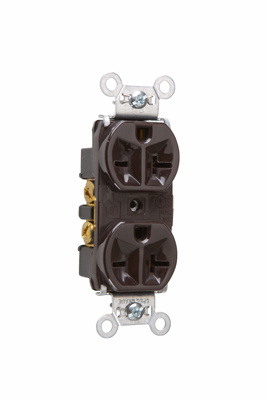

20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Brown

Item ID #5862B

Pass & Seymour

20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Brown

Name: 20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Brown
Brand: Pass & Seymour
SKU: 5862B
Price: 37.78 CAD
Availability: OutOfStock

Item ID #5862B

Specifications

See all specifications

Depth :	0.78 in
Amperage :	20.0 A
Height :	2.635 in

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 250V

Recommended tools

Specifications


Depth :	0.78 in
Amperage :	20.0 A
Height :	2.635 in
Voltage :	250.0 V
Width :	1.322 in
Country of Origin :	Mexico
Standard :	FEDSPEC
Number of Wires :	3.0
Standard :	cULus UL498
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Number of Receptacles :	2.0
Standard :	CSA C22.2 No. 42
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Application Sector :	Commercial
Features :	Brass Mounting Strap
NEMA Configuration Code :	6-20R
Connection Location :	Back and Side
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Operating Temperature Max :	60.0 °C
Operating Temperature Min :	-40.0 °C
Operating Temperature :	-40°-60°C
Dielectric Strength :	Withstands 2000V minimum
Environmental Conditions :	Flammability: UL94 V2
Special Features :	Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground.
Color :	Brown
Product Line :	Pass & Seymour
