Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 2 NC, staggered, 2 m
Item ID #XCSDMR7912
Telemecanique Sensors
Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 2 NC, staggered, 2 m
Item ID #XCSDMR7912Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 2 NC, staggered, 2 m
Specifications
See all specifications| Product Certifications : | CSA || UL |
| Ambient Air Temperature For Operation : | -25-85 °C |
| Standards : | EN/IEC 60947-5-1 || UL 508 || EN/ISO 12100 || EN/IEC 60204-1 || CSA C22.2 No 14 || ISO 14119 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

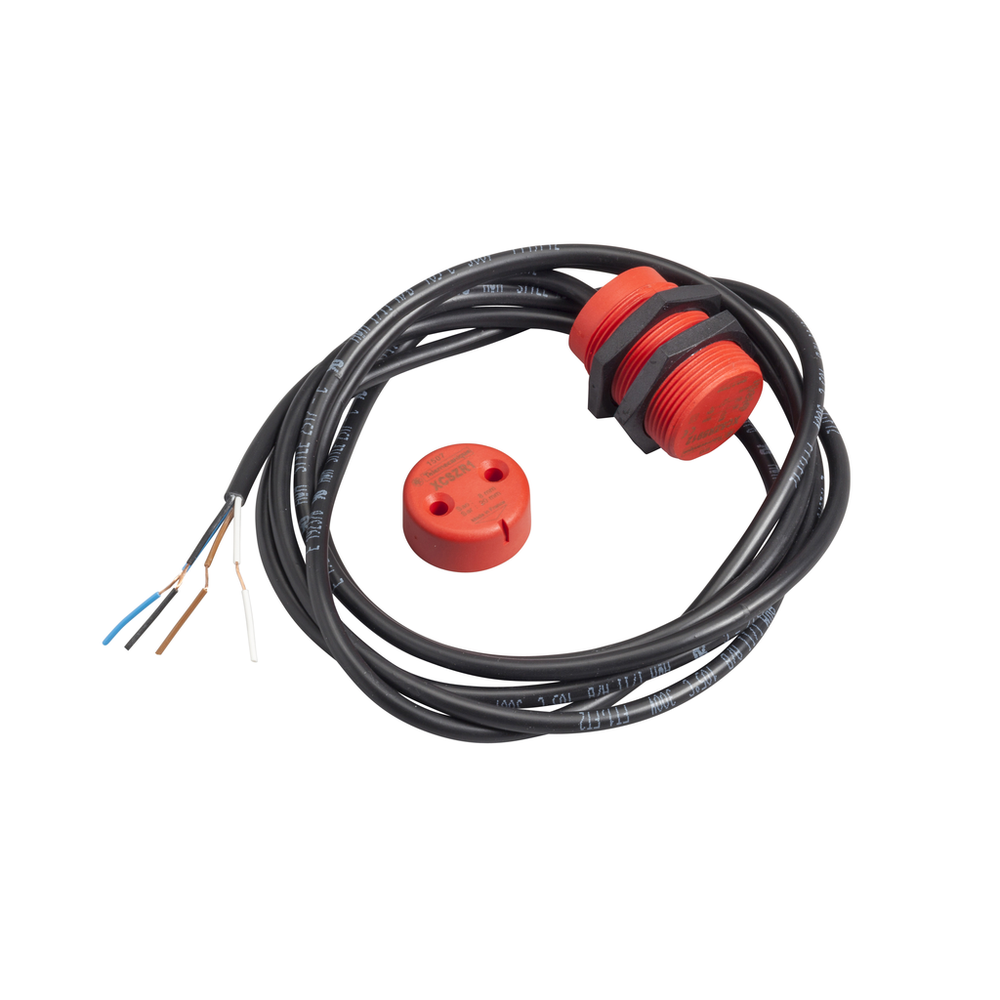

This XCSDMR Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally closed staggered contacts in presence of magnet + one Led. It has a cylindrical design with a 2 meter with PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Recommended tools
Environment
| Product Certifications : | CSA || UL |
| Ambient Air Temperature For Operation : | -25-85 °C |
| Standards : | EN/IEC 60947-5-1 || UL 508 || EN/ISO 12100 || EN/IEC 60204-1 || CSA C22.2 No 14 || ISO 14119 |
