Complete control station, Harmony 9001B, 2 push buttons START-STOP, with lockout, 5A, 600V AC, 1NO + 1NC NEMA 7/9
Item ID #9001BR204
Schneider Electric
Complete control station, Harmony 9001B, 2 push buttons START-STOP, with lockout, 5A, 600V AC, 1NO + 1NC NEMA 7/9
Item ID #9001BR204Complete control station, Harmony 9001B, 2 push buttons START-STOP, with lockout, 5A, 600V AC, 1NO + 1NC NEMA 7/9
Specifications
See all specifications| Product Certifications : | CE || CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR |
| Environmental Characteristic : | hazardous location |
| Nema Degree Of Protection : | NEMA 7/9 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

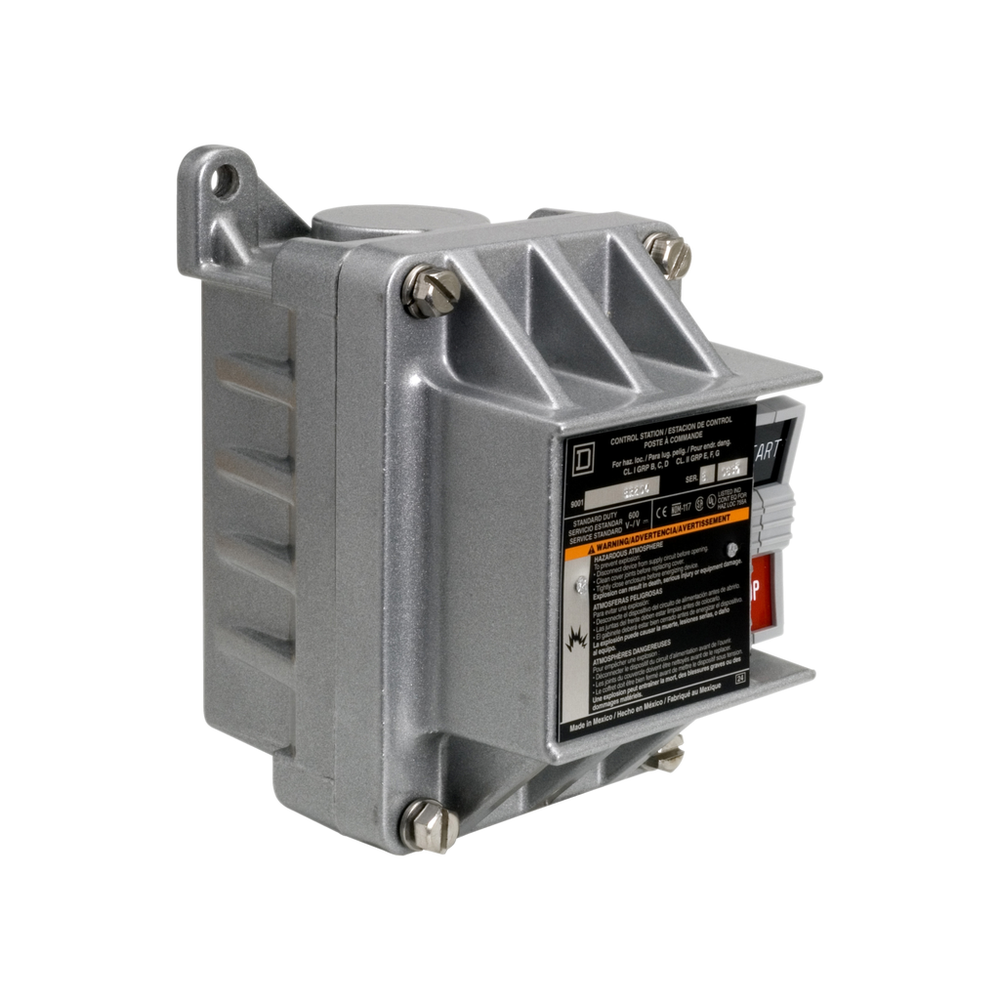

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Recommended tools
Environment
| Product Certifications : | CE || CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR |
| Environmental Characteristic : | hazardous location |
| Nema Degree Of Protection : | NEMA 7/9 |
