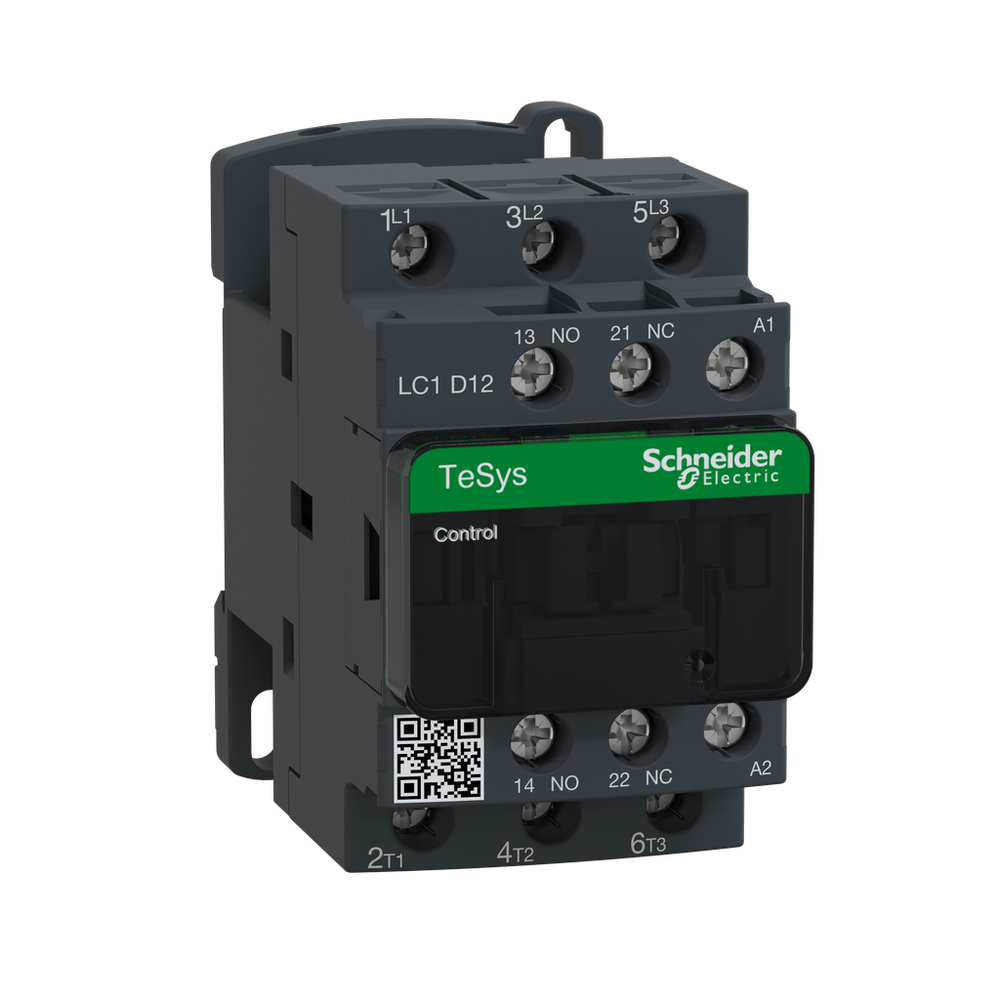

| Non-Overlap Time : | 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact |
| Minimum Switching Current : | 5 mA for signalling circuit |
| Power Dissipation Per Pole : | 0.36 W AC-3 || 1.56 W AC-1 || 0.36 W AC-3e |
| Average Impedance : | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Auxiliary Contact Composition : | 1 NO + 1 NC |
| [Ith] Conventional Free Air Thermal Current : | 25 A (at 60 °C) for power circuit || 10 A (at 60 °C) for signalling circuit |
| Control Circuit Voltage Limits : | 0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz |
| Mounting Support : | rail || plate |
| Contact Compatibility : | M2 |
| Control Circuit Type : | AC 50/60 Hz standard |
| Safety Reliability Level : | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Pollution Degree : | 3 |
| Insulation Resistance : | > 10 MOhm for signalling circuit |
| Rated Breaking Capacity : | 250 A at 440 V for power circuit conforming to IEC 60947 |
| Irms Rated Making Capacity : | 250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Associated Fuse Rating : | 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 40 A gG at <= 690 V coordination type 1 for power circuit || 25 A gG at <= 690 V coordination type 2 for power circuit |
| Inrush Power In Va : | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| [Uimp] Rated Impulse Withstand Voltage : | 6 kV IEC 60947 |
| Pole Contact Composition : | 3 NO |
| Connections - Terminals : | power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end |
| Coil Technology : | without built-in suppressor module |
| Operating Time : | 12...22 ms closing || 4...19 ms opening |
| Minimum Switching Voltage : | 17 V for signalling circuit |
| Maximum Operating Rate : | 3600 cyc/h 60 °C |
| Signalling Circuit Frequency : | 25...400 Hz |
| Tightening Torque : | power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 |
| Electrical Durability : | 2 Mcycles 12 A AC-3 <= 440 V || 0.8 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 12 A AC-3e <= 440 V |
| Mechanical Durability : | 15 Mcycles |
| Auxiliary Contacts Type : | mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1 |
| Compatibility Code : | LC1D |
| Hold-In Power Consumption In Va : | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Overvoltage Category : | III |
| Motor Power Hp : | 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors || 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 3 hp at 200/208 V AC 50/60 Hz for 3 phases motors || 3 hp at 230/240 V AC 50/60 Hz for 3 phases motors || 7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors || 10 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Motor Power Kw : | 3 kW at 220...230 V AC 50/60 Hz (AC-3) || 5.5 kW at 380...400 V AC 50/60 Hz (AC-3) || 5.5 kW at 415...440 V AC 50/60 Hz (AC-3) || 7.5 kW at 500 V AC 50/60 Hz (AC-3) || 7.5 kW at 660...690 V AC 50/60 Hz (AC-3) || 3.7 kW at 400 V AC 50/60 Hz (AC-4) || 3 kW at 220...230 V AC 50/60 Hz (AC-3e) || 5.5 kW at 380...400 V AC 50/60 Hz (AC-3e) || 5.5 kW at 415...440 V AC 50/60 Hz (AC-3e) || 7.5 kW at 500 V AC 50/60 Hz (AC-3e) || 7.5 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| [Ui] Rated Insulation Voltage : | power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL |
| [Icw] Rated Short-Time Withstand Current : | 105 A 40 °C - 10 s for power circuit || 210 A 40 °C - 1 s for power circuit || 30 A 40 °C - 10 min for power circuit || 61 A 40 °C - 1 min for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit |
| Heat Dissipation : | 2-3 W at 50/60 Hz |
| Protective Cover : | with |
