Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard
Item ID #VC2GUN
Schneider Electric
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard
Item ID #VC2GUNEnclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,conforming UL/CSA standard
Specifications
See all specifications| Ambient Air Temperature For Operation : | -20-50 °C |
| Standards : | IEC 60204 || CSA C22.2 No 14 || UL 508 || IEC 60947-4-1 |
| Ip Degree Of Protection : | IP65 IEC 60529 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

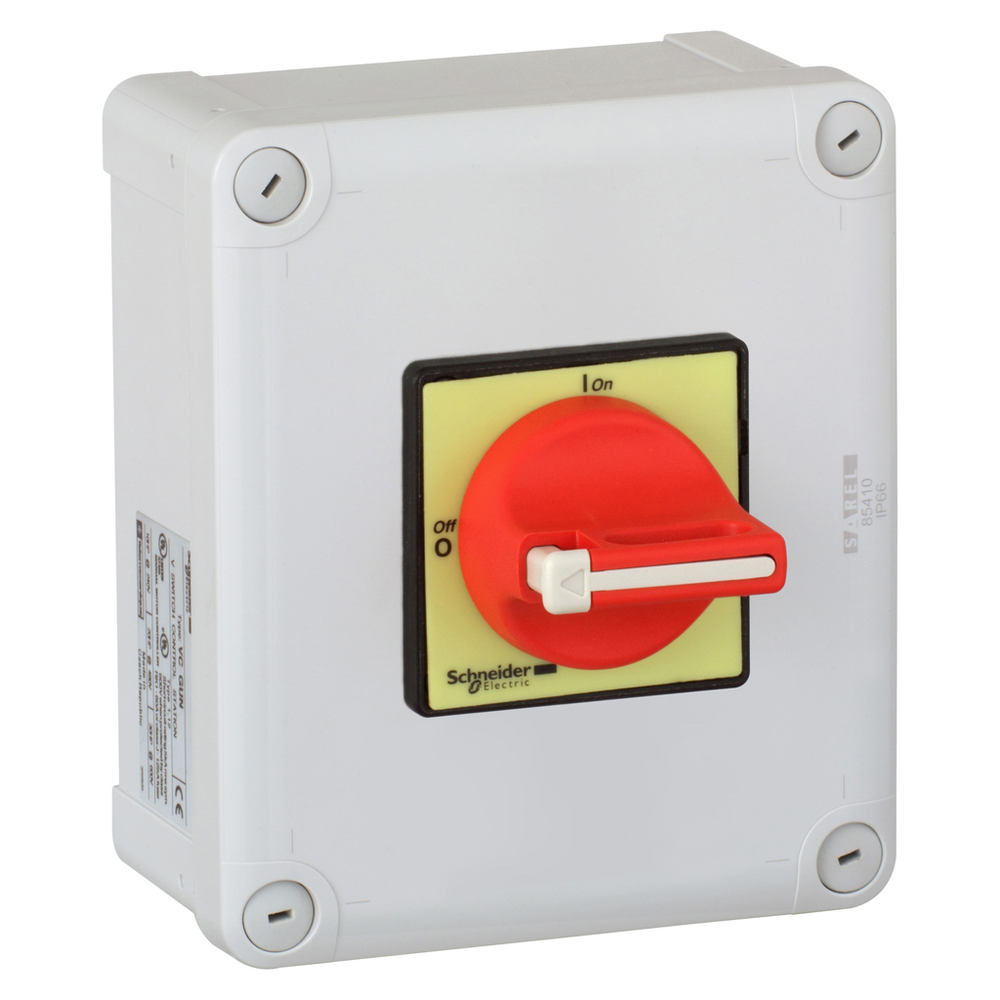

TeSys enclosed starter with switch disconnector, 3 poles, 25A/600V, for main and emergency stop switching in motor applications up to 15hp@600V. Enclosure fitted with a 3-pole switch body Vario V2, red rotary handle, yellow front plate with O/I marking. Possible attachement of 2 add-on modules to the internal switch body (main pole, neutral pole, earthing module, auxiliary contacts), to be ordered separately. NEMA type 1 and type 12 enclosure, IP65 protection, sealable, padlockable in O-Off position. It conforms to UL/CSA standards, Green Premium compliant (RoHS/REACh).
Recommended tools
Environment
| Ambient Air Temperature For Operation : | -20-50 °C |
| Standards : | IEC 60204 || CSA C22.2 No 14 || UL 508 || IEC 60947-4-1 |
| Ip Degree Of Protection : | IP65 IEC 60529 |
