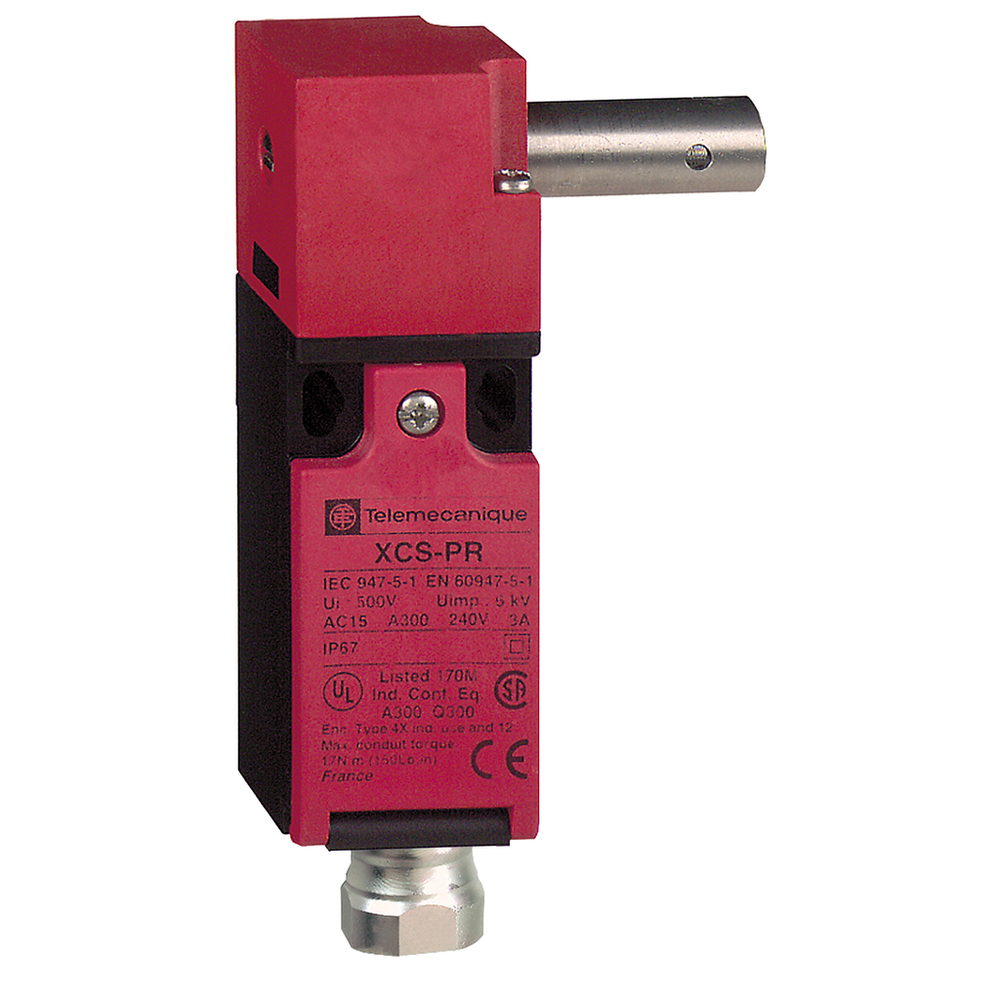

Guard switch, Telemecanique Safety switches XCS, XCSPR, spindle 30 mm, 2NC -1/2"NPT
Item ID #XCSPR753
Telemecanique Sensors
Guard switch, Telemecanique Safety switches XCS, XCSPR, spindle 30 mm, 2NC -1/2"NPT
Item ID #XCSPR753Guard switch, Telemecanique Safety switches XCS, XCSPR, spindle 30 mm, 2NC -1/2"NPT
Specifications
See all specifications| Product Certifications : | CSA || UL || BG |
| Ambient Air Temperature For Operation : | -25-70 °C |
| Standards : | EN/IEC 60204-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || EN 1088/ISO 14119 || EN/ISO 12100 || EN/IEC 60947-5-1 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description
This XCSPR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and a 1/2" NPT cable gland entry. It has 2 normally closed slow break contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Recommended tools
Environment
| Product Certifications : | CSA || UL || BG |
| Ambient Air Temperature For Operation : | -25-70 °C |
| Standards : | EN/IEC 60204-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || EN 1088/ISO 14119 || EN/ISO 12100 || EN/IEC 60947-5-1 |
