| Customizable : | 0, no |
| Resistance To Electrostatic Discharge : | 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Shape Of Screw Head : | cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Shock Resistance : | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Supply Voltage Limits : | 10-15 V DC, 10.2-13.8 V AC |
| Terminals Description Iso N 1 : | (X1-X2)PL, (X1-X2)PL |
| Connections Terminals : | screw clamp terminals, <= 2 x 1.5 mm² with cable end, screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Certificate Agency : | UL Listed, CSA, GL, LROS (Lloyds register of shipping), BV, DNV |
| Local Data Status : | Publishable |
| Local Publishable Date : | 2026-01-12 |
| Return Indicator : | N |
| Stocking Flag : | Y |
| Stock Policy : | 1 |
| Weee Scope : | In |
| Weee Product Category : | 5 |
| Scope Perimeter : | At least in Europe |
| Rohs Eur In Scope : | No |
| Rohs Eur Status : | Compliant By Exemption |
| Rohs Eur Conformity Date : | 1930 |
| Rohs Eur Full Compliance Status : | Compliant By Exemption |
| China Rohs In Scope : | Yes |
| China Rohs Label : | 5 |
| With Recycled Cardboard : | Yes |
| Without Single Use Plastic : | Yes |
| Product Kit Identifier : | N |
| Average Percentage Of Recycled Metal Content : | 20 % |
| Average Percentage Of Recycled Plastic Content : | 44 % |
| Bulb Base : | integral LED |
| Compatibility Code : | ZB4 |
| Current Consumption : | 18 mA |
| Device Short Name : | ZB4 |
| Electrical Shock Protection Class : | class I conforming to IEC 60536 |
| Electromagnetic Emission : | class B IEC 55011 |
| Fixing Collar Material : | zamak |
| Important Message : | All colored LED are replaced with a single Universal LED block for use with new illuminated heads (more information at se.com/harmonyxb4 or se.com/harmonyxb5) |
| Light Source : | protected LED |
| Product Availability : | Non-Stock - Not normally stocked in distribution facility |

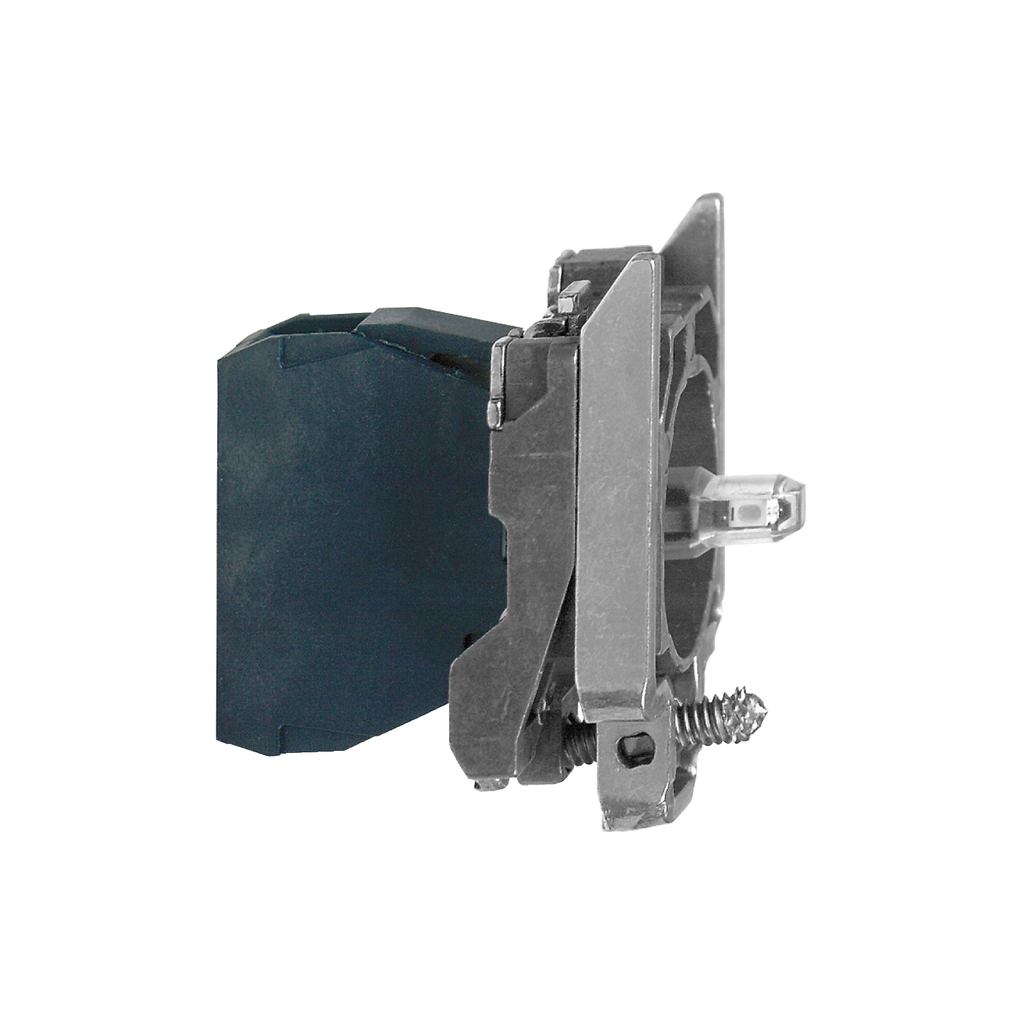

| Product Or Component Type : | complete body/light block assembly |
| Protective Treatment : | TH |
| Range Of Product : | Harmony XB4 |
| Resistance To Electromagnetic Fields : | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients : | 2 kV IEC 61000-4-4 |
| Returnability : | No |
| Sale Per Indivisible Quantity : | 1 |
| Service Life : | 100000 h at rated voltage and 25 °C |
| Signalling Type : | steady |
| Sustainable Packaging : | Yes |
| Tightening Torque : | 0.8-1.2 N.m EN 60947-1 |
| Vibration Resistance : | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Weee Label : | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Light Source Color : | orange |
| Warranty In Months : | 18 |
