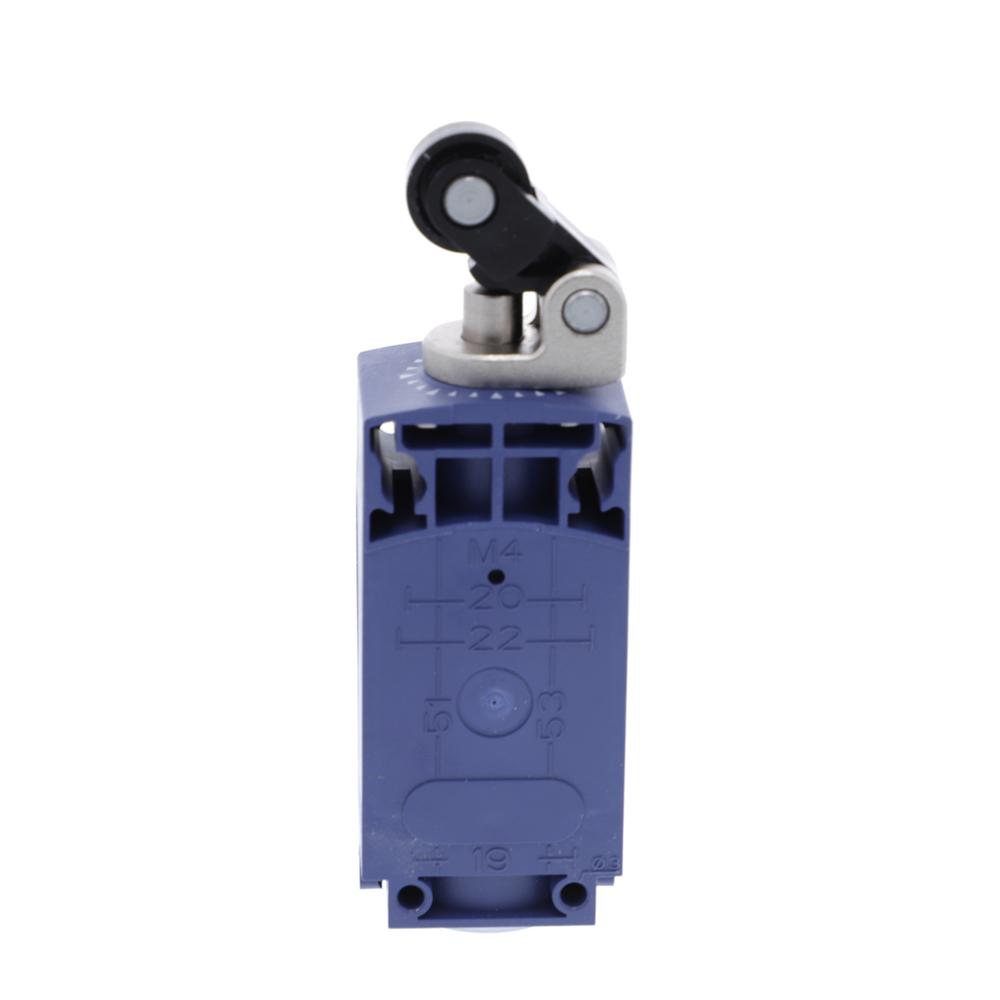

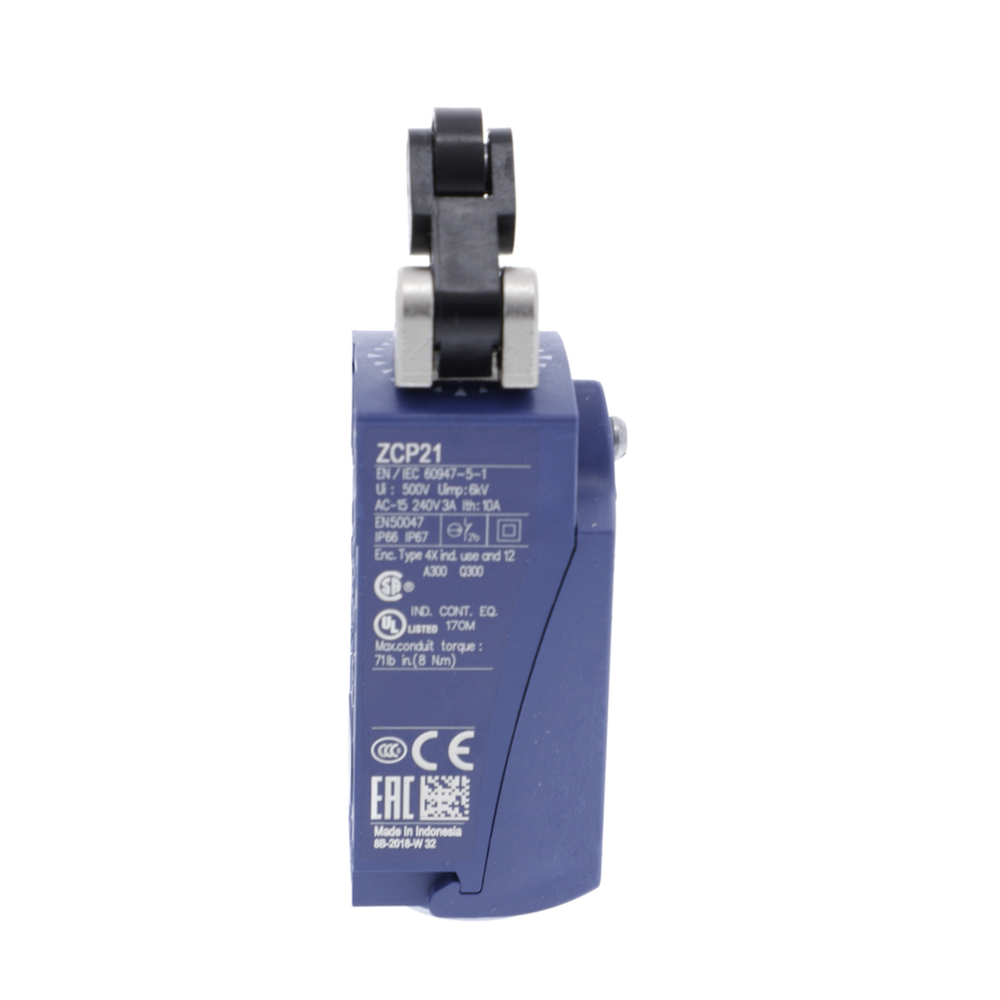

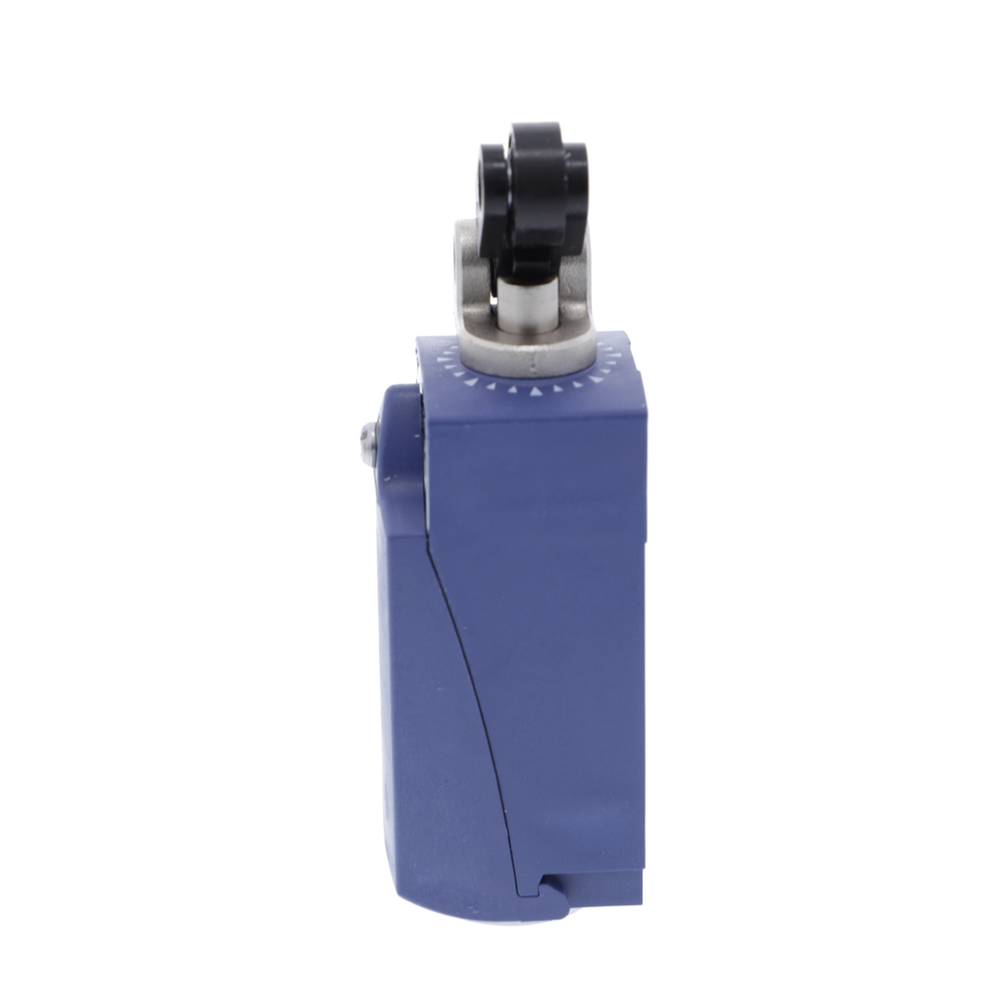

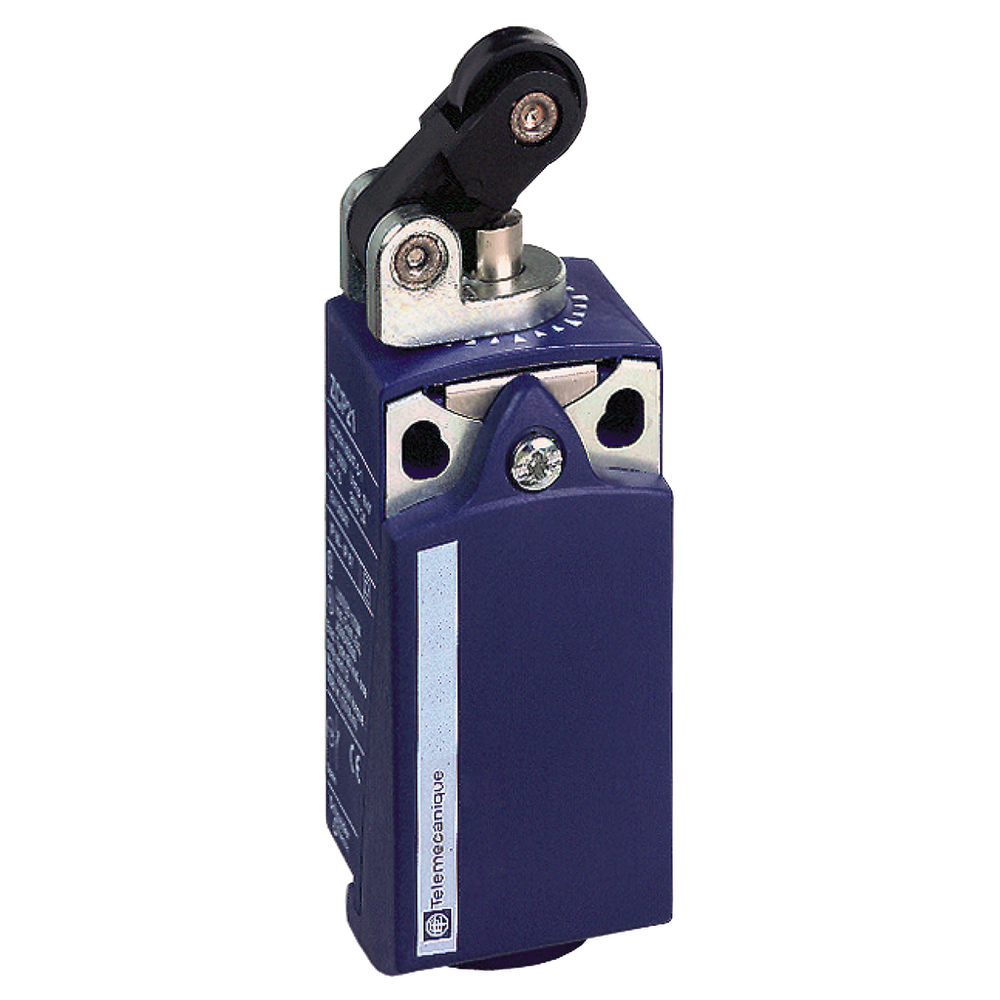

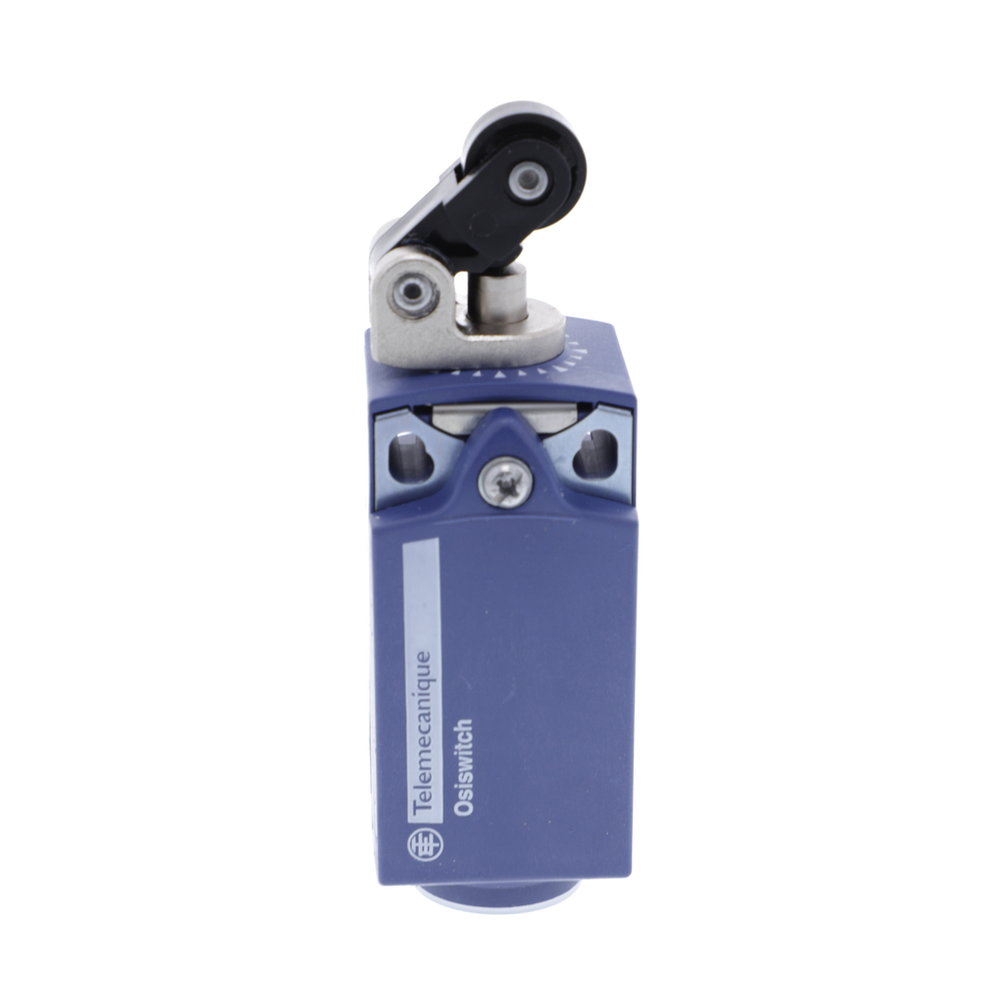

Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, Pg11
Item ID #XCKP2121G11
Telemecanique Sensors
Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, Pg11
Item ID #XCKP2121G11Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, Pg11
Specifications
See all specifications| Product Certifications : | CSA || UL || CCC |
| Ik Degree Of Protection : | IK04 EN 50102 |
| Ambient Air Temperature For Operation : | -25-70 °C |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description
This XCKP compact format (CENELEC EN 50047) limit switch has a steel roller lever plunger with horizontal actuation and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Recommended tools
Environment
| Product Certifications : | CSA || UL || CCC |
| Ik Degree Of Protection : | IK04 EN 50102 |
| Ambient Air Temperature For Operation : | -25-70 °C |
