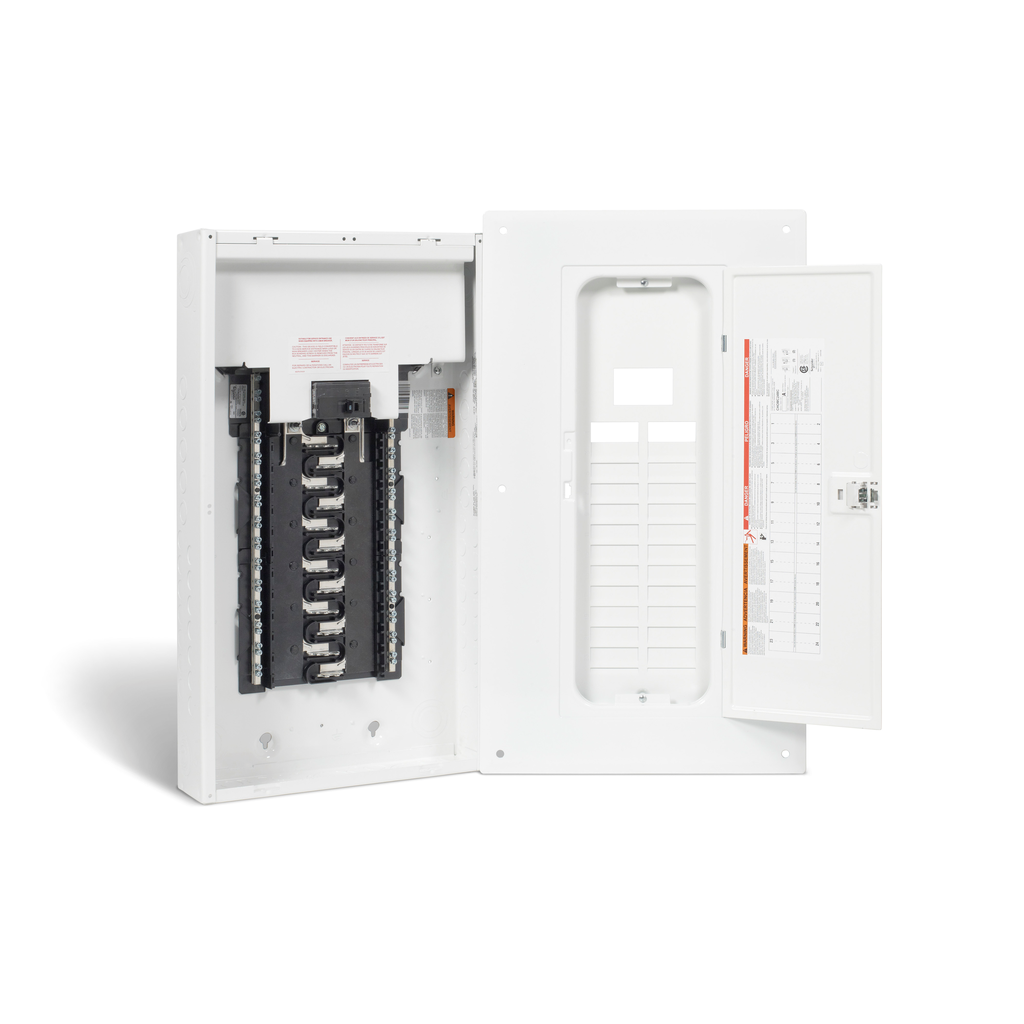

Loadcentre, Homeline, 1 phase, 24 spaces, 48 circuits, 125A main breakers, Type 3R, gnd bar, combo cover
Item ID #CHOM2448M125GC
Schneider Electric
Loadcentre, Homeline, 1 phase, 24 spaces, 48 circuits, 125A main breakers, Type 3R, gnd bar, combo cover
Item ID #CHOM2448M125GCLoadcentre, Homeline, 1 phase, 24 spaces, 48 circuits, 125A main breakers, Type 3R, gnd bar, combo cover
Specifications
See all specifications| Cover Plate Colour Tint : | white |
| Cover Type : | combination flush/surface cover |
| Number Of Tandem Circuit Breakers : | 24 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main circuit breaker that is rated at 125 A single phase. This CHOM load center provides a 22 kA breaking capacity. This system provides 24 spaces in a NEMA 1 enclosure. The electrical connections are lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 26.04 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Recommended tools
Complementary
| Cover Plate Colour Tint : | white |
| Cover Type : | combination flush/surface cover |
| Number Of Tandem Circuit Breakers : | 24 |
