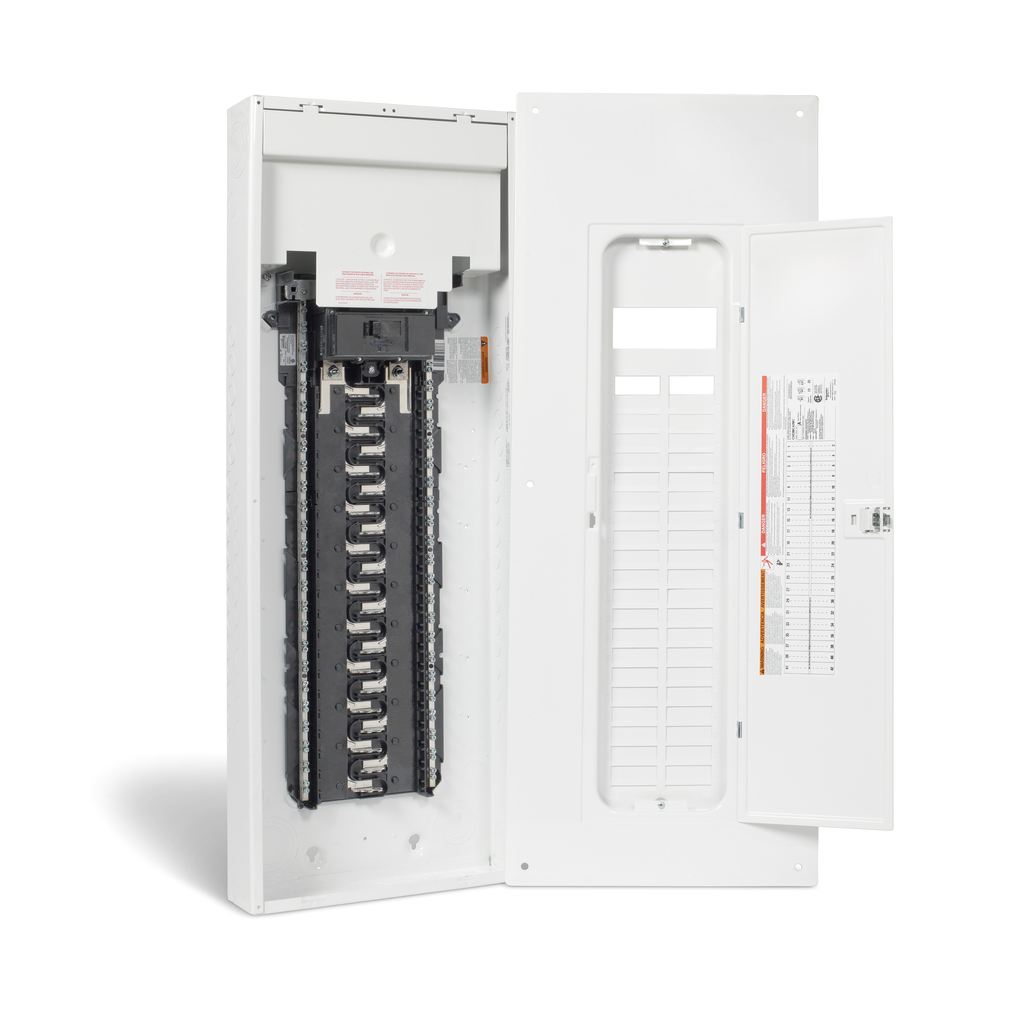

Loadcentre, Homeline, 1 phase, 42 spaces, 84 circuits, 150A main breakers, Type 1, gnd bar, combo cover
Item ID #CHOM4284M150GC
Schneider Electric
Loadcentre, Homeline, 1 phase, 42 spaces, 84 circuits, 150A main breakers, Type 1, gnd bar, combo cover
Item ID #CHOM4284M150GCLoadcentre, Homeline, 1 phase, 42 spaces, 84 circuits, 150A main breakers, Type 1, gnd bar, combo cover
Specifications
See all specifications| Mounting Mode : | wall mount |
| Short-Circuit Current : | 22 kA |
| Range Of Product : | Homeline |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a main circuit breaker that is rated at 150A single phase. This CHOM load center provides a 22kA breaking capacity. This system provides 42 spaces in a NEMA 1 enclosure. A grounding bar is included but not installed. The box lugs will accept a wire range of 4 AWG to 250kcmil copper or aluminum wire. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Recommended tools
Specifications
| Mounting Mode : | wall mount |
| Short-Circuit Current : | 22 kA |
| Range Of Product : | Homeline |
