Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 910 mm, R=14 mm
Item ID #XUSL4E14F091N
Telemecanique Sensors
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 910 mm, R=14 mm
Item ID #XUSL4E14F091NSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 910 mm, R=14 mm
Specifications
See all specifications| Product Certifications : | TÜV || cULus || CE |
| Ambient Air Temperature For Operation : | -20-55 °C || 14-131 °F |
| Shock Resistance : | 10 gn 16 ms IEC 61496-1 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

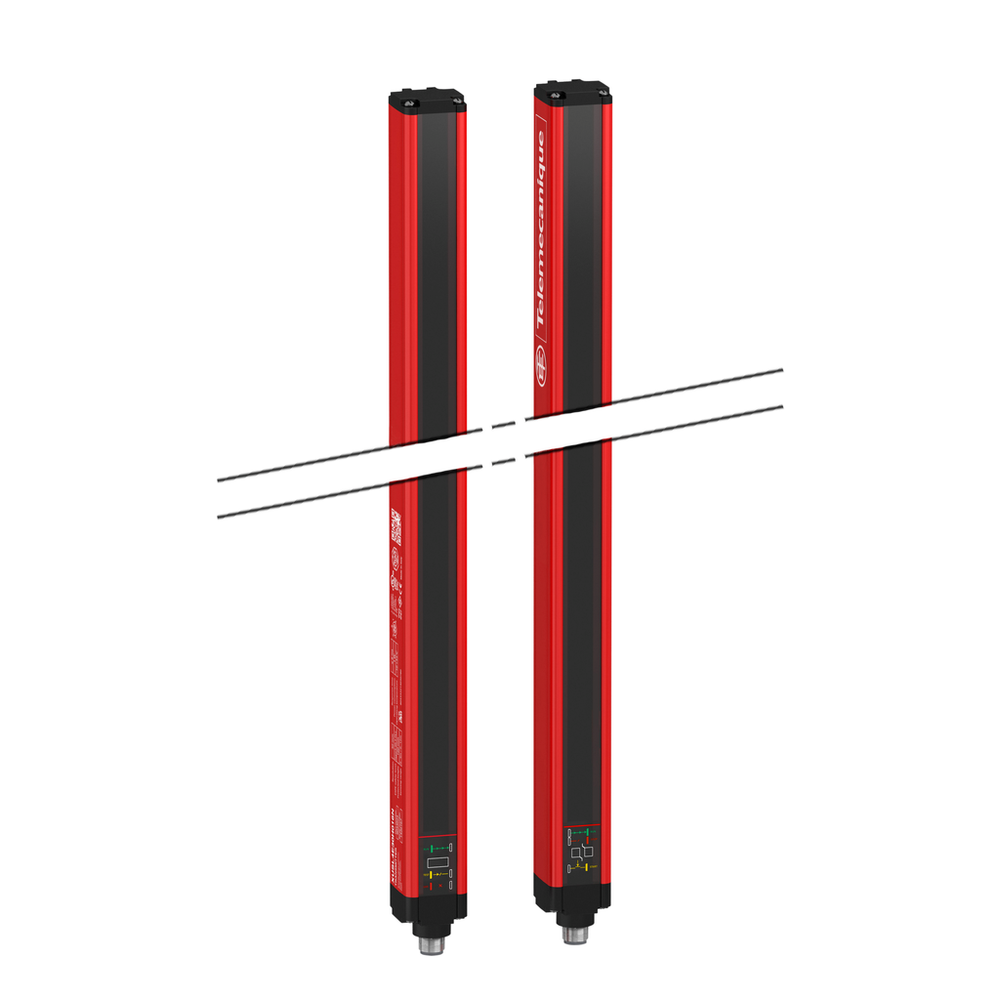

This XUSL4E Type 4 Safety Light Curtain is designed for finger detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 90 light beams with a protected height of 910mm. Its PFHD reliability data is 2.24 x 10⁻⁸. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -20°C to +55°C and the sensing distance is 0m to 3m or 1m to 6m selectable by wiring.
Recommended tools
Environment
| Product Certifications : | TÜV || cULus || CE |
| Ambient Air Temperature For Operation : | -20-55 °C || 14-131 °F |
| Shock Resistance : | 10 gn 16 ms IEC 61496-1 |
