Safety switch, Telemecanique Safety switches XCS, metal XCSE, 2NC+1 NO, slow break, 2 entries tapped 1/2" NPT, 24 V
Item ID #XCSE7313
Telemecanique Sensors
Safety switch, Telemecanique Safety switches XCS, metal XCSE, 2NC+1 NO, slow break, 2 entries tapped 1/2" NPT, 24 V
Item ID #XCSE7313Safety switch, Telemecanique Safety switches XCS, metal XCSE, 2NC+1 NO, slow break, 2 entries tapped 1/2" NPT, 24 V
Specifications
See all specifications| Product Certifications : | UL || CSA |
| Ambient Air Temperature For Operation : | -25-40 °C |
| Standards : | EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

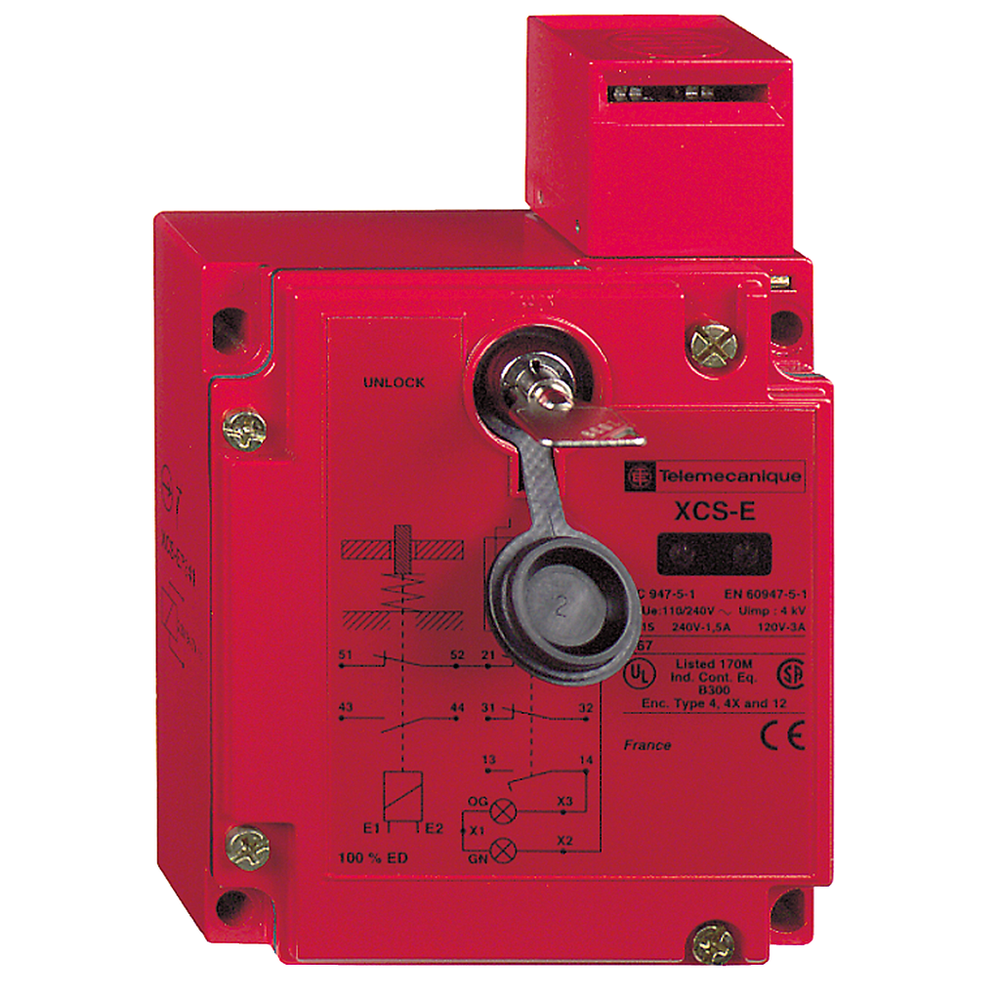

This XCSE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated rectangular Zamak body with 2 x 1/2" NPT cable gland entries, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Recommended tools
Environment
| Product Certifications : | UL || CSA |
| Ambient Air Temperature For Operation : | -25-40 °C |
| Standards : | EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 |
