| Persona Type Ids : | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
| Persona Type Names : | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
| Market Segmentation Id : | COMMERCIAL, INDUSTRIAL |
| Market Segmentation : | Commercial, Industrial |
| Contact Operation : | standard, standard |
| Operating Rate : | <= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Operating Time : | 5 ms reset, 12 ms |
| Shock Resistance : | 5 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27 |
| Vibration Resistance : | +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Control Circuit Voltage : | 48 V |
| Control Circuit Type2 : | DC |
| Certificate Agency : | UL, EAC, CSA |

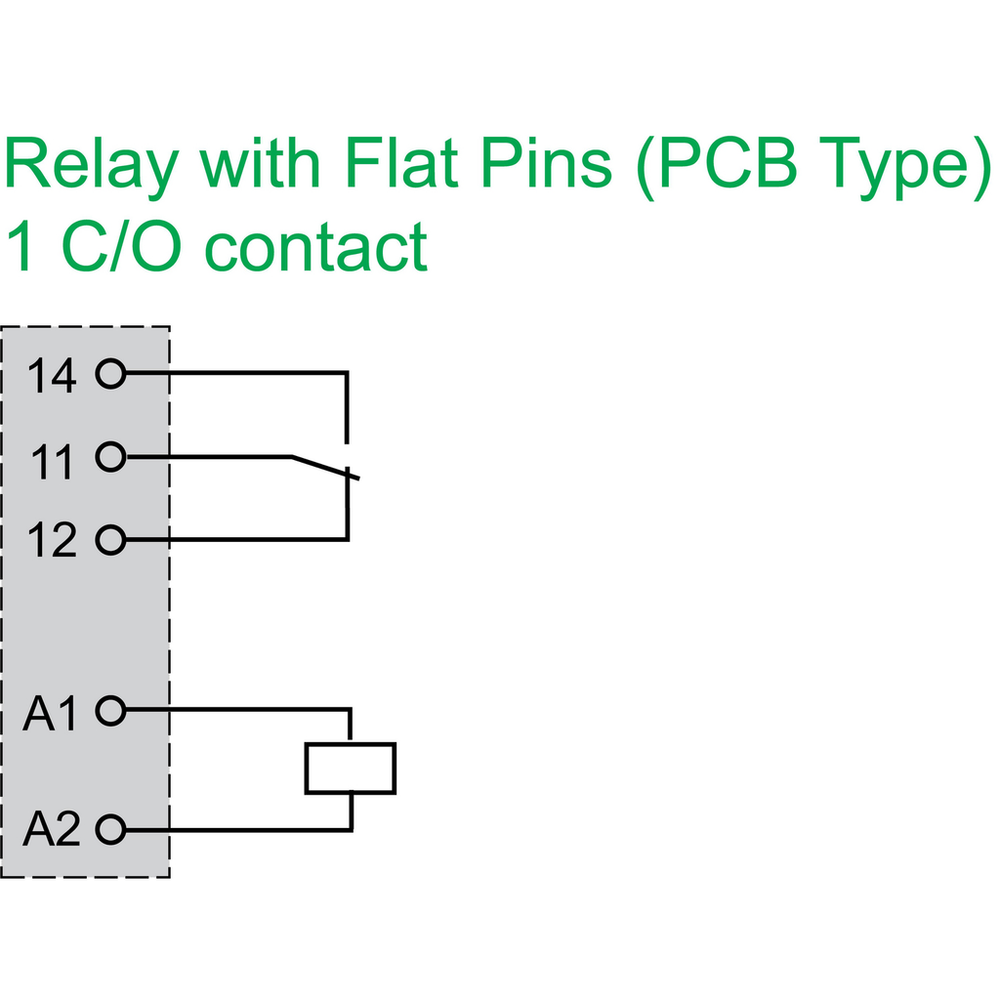

| Terminals Description Iso N°1 : | (A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC |
| Carbon Footprint Of The Distribution Phase A4 : | 0.000774129, 0 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 : | 0.001531206, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 : | 0 kg CO2 eq., 0.0000362786 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 : | 0.2 kg CO2 eq., 0.1872732939 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 : | 2 kg CO2 eq., 2.136386116 |
| Local Data Status : | Publishable |
| Local Publishable Date : | 2026-08-10 |
| Return Indicator : | N |
| Weee Scope : | Out |
| Weee Product Category : | 5 |
| Scope Perimeter : | At least in Europe |
| Eoli Availability Display : | No need of specific recycling operations |
| Reach Full Compliance Status : | Free of Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id : | NOT_CONTAINING_SVHC |
| Reach Compliance Directive : | Free of Substances of Very High Concern above the threshold |
| Rohs Eur In Scope : | No |
| Rohs Eur Status : | Compliant |
| Rohs Eur Conformity Date : | 2353 |
| Rohs Eur Full Compliance Status : | Compliant |
| China Rohs In Scope : | Yes |
| China Rohs Label : | 1 |
| Phenolic Free Solution : | Yes |
| With Recycled Cardboard : | Yes |
| Without Single Use Plastic : | No |
| Product Contributes To Saved And Avoided Emissions : | No |
| Tier Id : | 1 |
| Tier : | 1 |
| Function Option Id : | STANDARD |
| Function Option : | Standard |
| Product Kit Identifier : | N |
| Average Coil Consumption : | 0.21 W |
| Average Resistance : | 10600 Ohm at 23 °C +/- 15 % |
| Compatibility Code : | RSL |
| Contacts Material : | silver alloy (AgSnO2) |
| Contacts Type And Composition : | 1 C/O |
| Control Type : | without lockable test button |
| Dielectric Strength : | 1000 V AC between contacts4000 V AC between coil and contact |
| Electrical Durability : | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| Load Current : | 6 A 250 V AC 0.5 mm mounting distance |
| Mechanical Durability : | 10000000 cycles |
| Mounting Support : | socket or PCB |
| Operating Position : | any position |
| Product Availability : | Non-Stock - Not normally stocked in distribution facility |

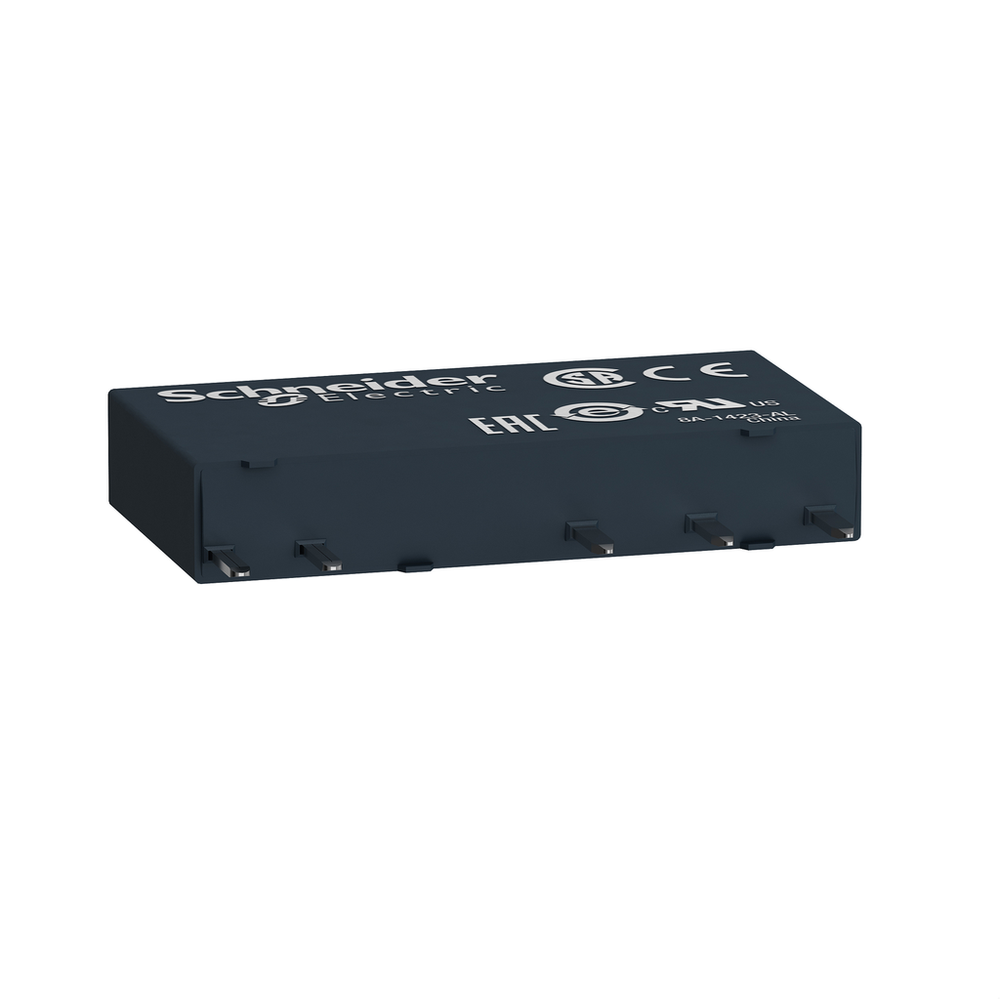

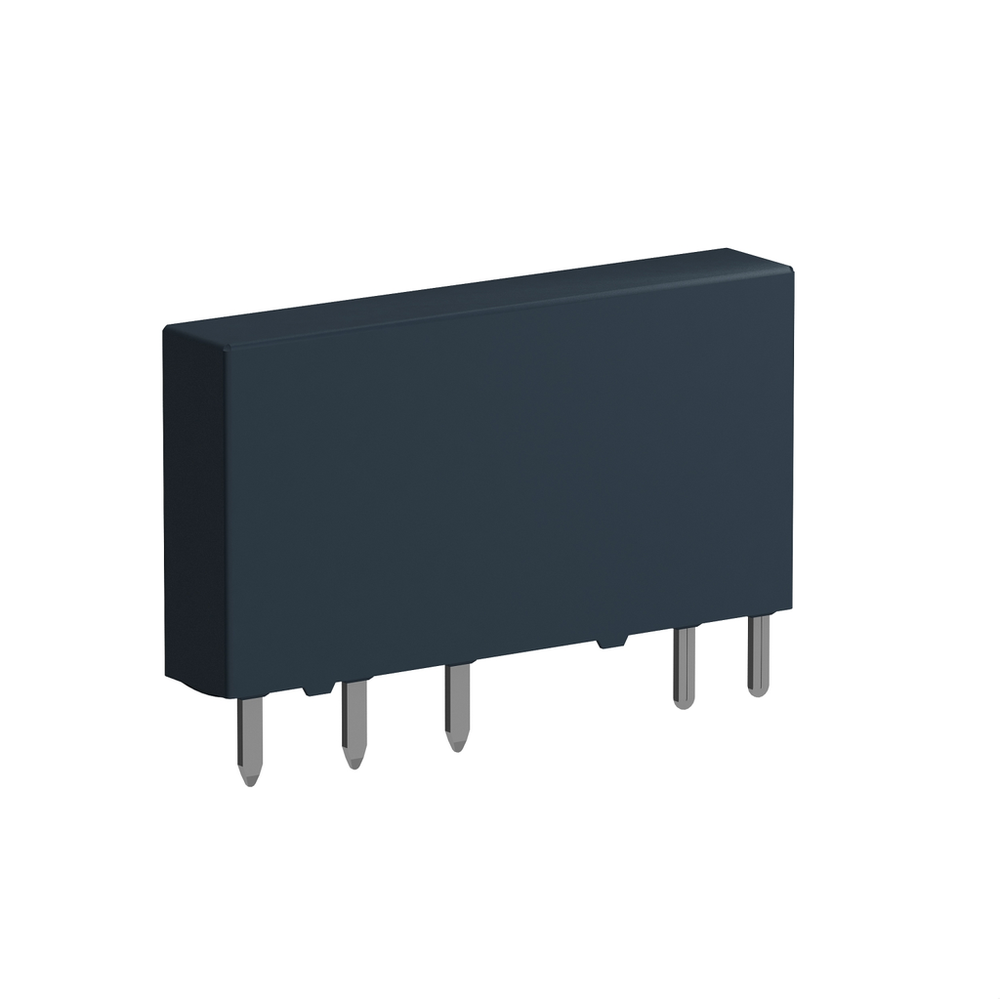

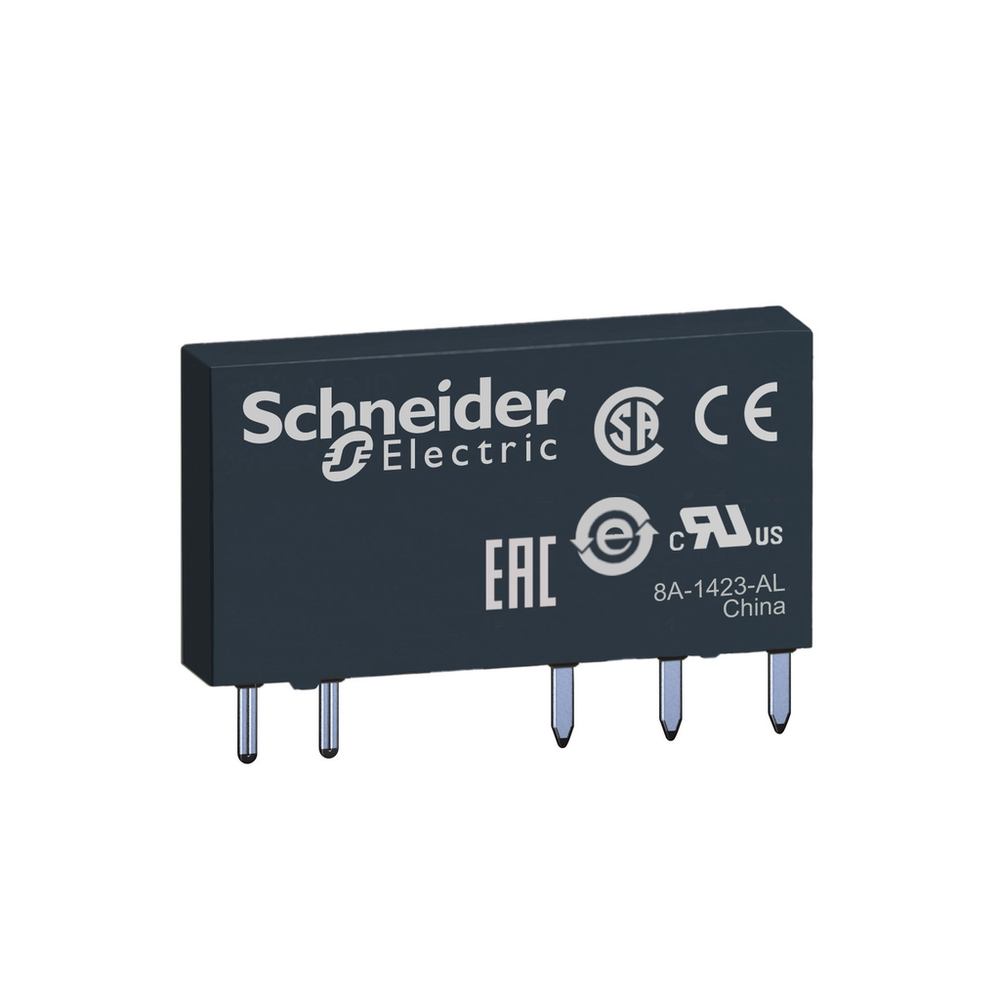

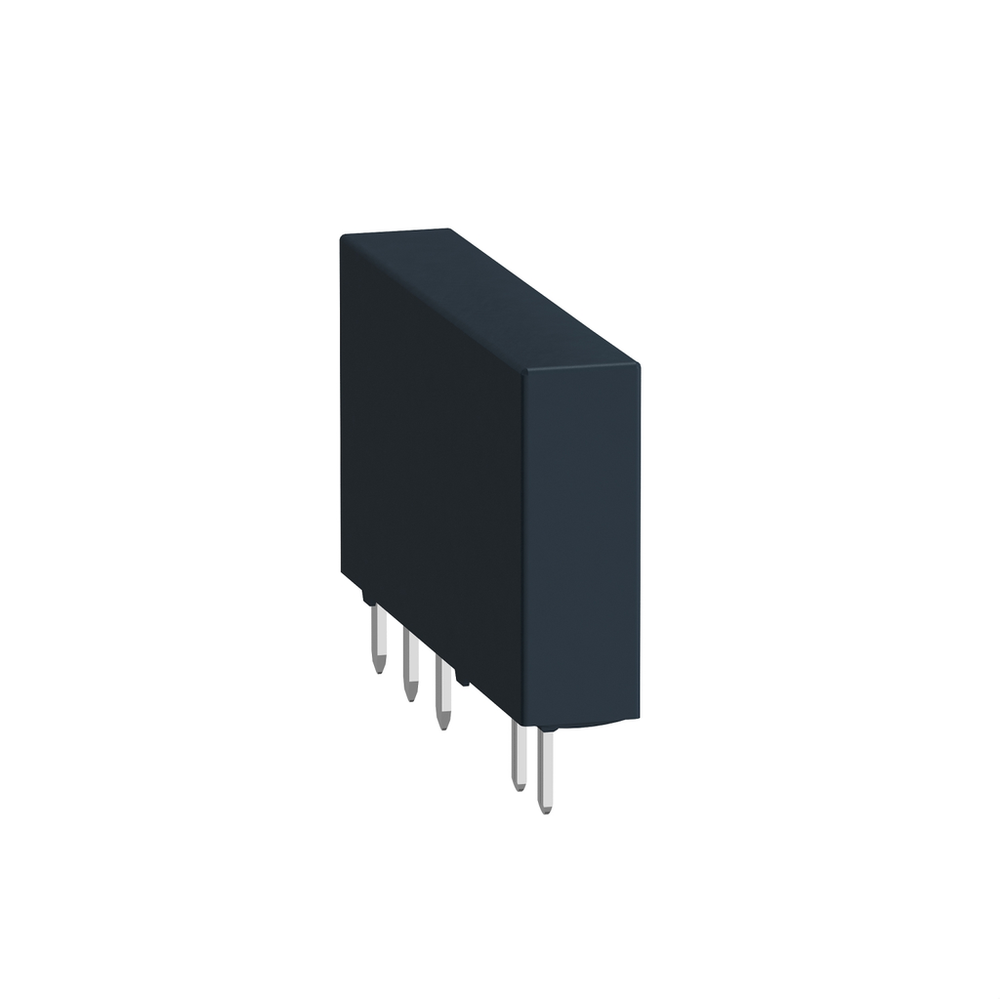

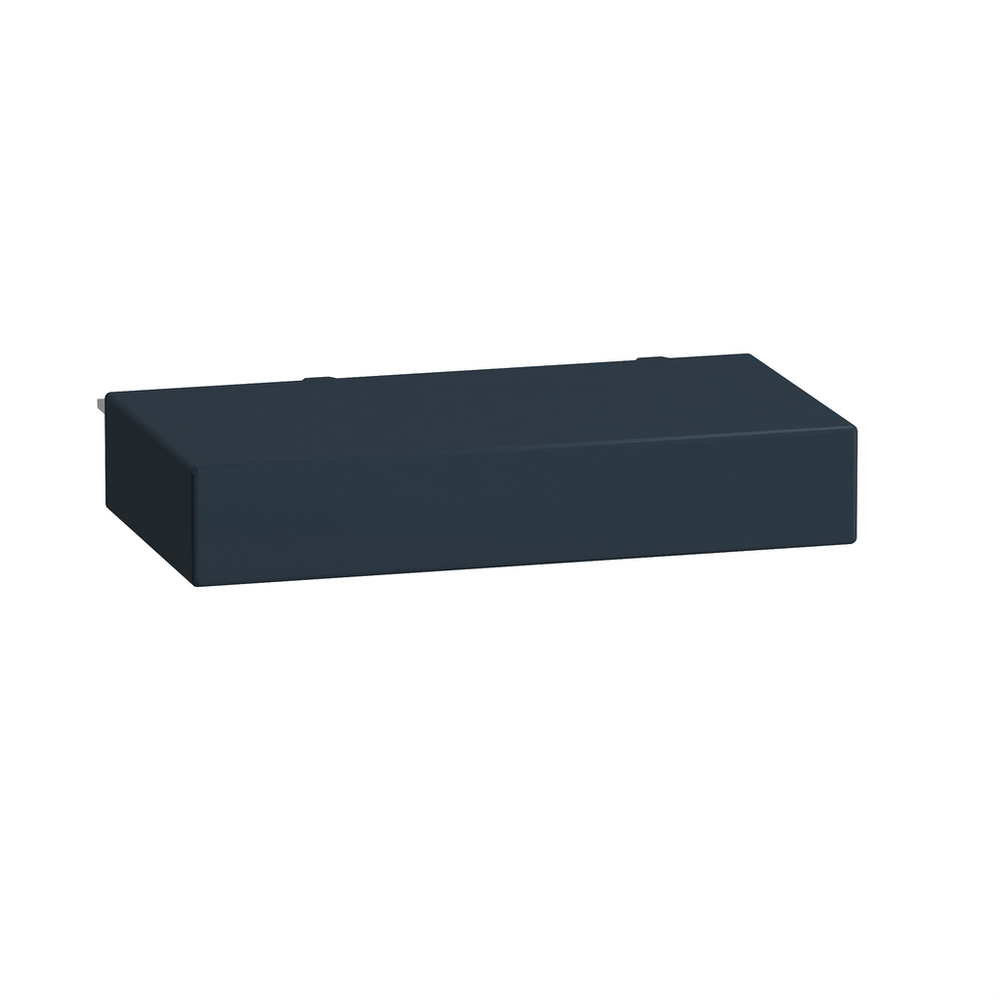

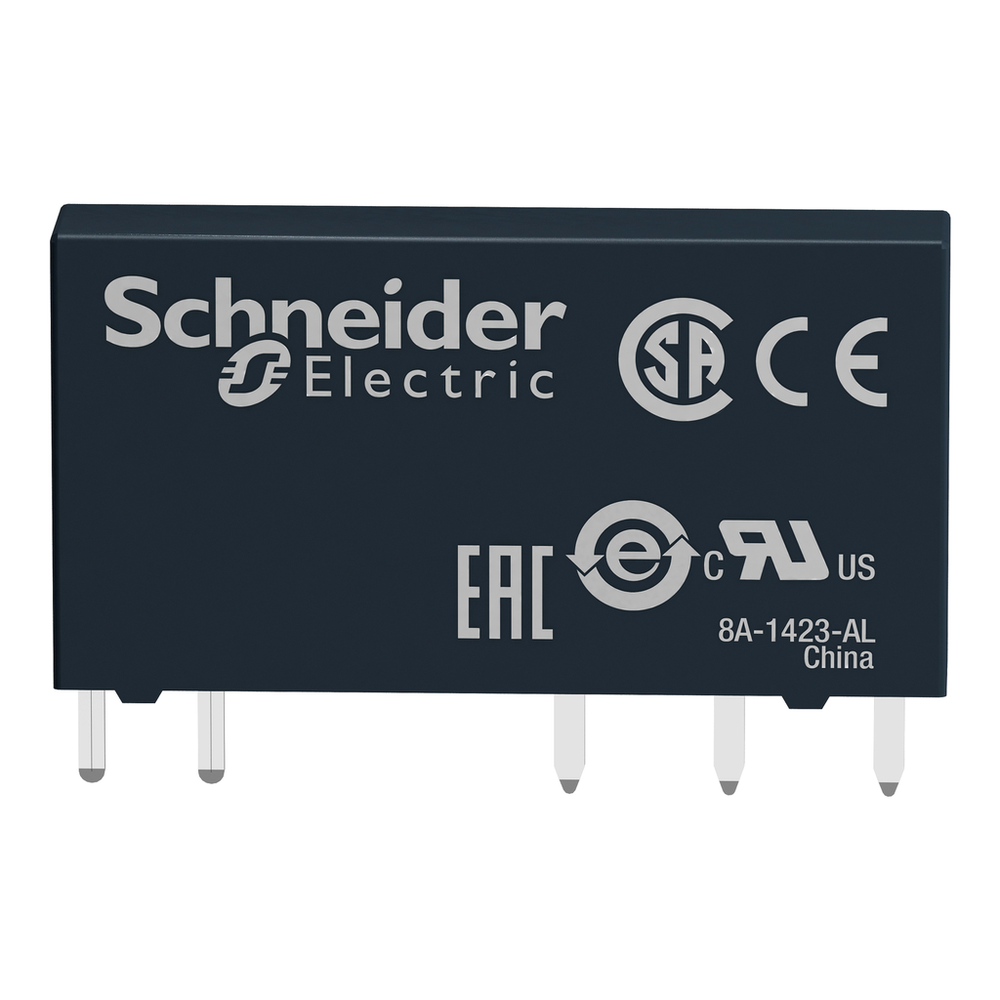

| Product Or Component Type : | plug-in relay |
| Protection Category : | RT III |

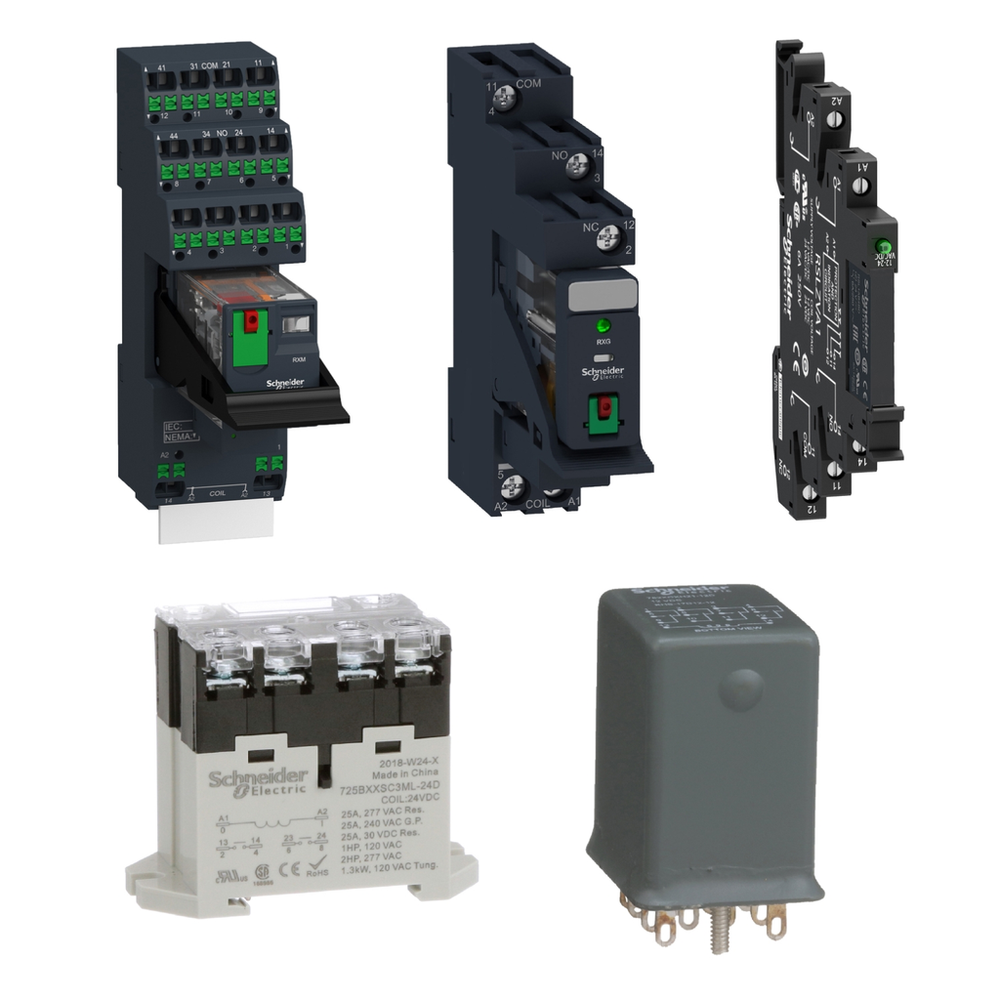

| Range Of Product : | Harmony Electromechanical Relays |
| Relay Type : | slim interface relay |
| Returnability : | No |
| Safety Reliability Data : | B10d = 60000 |
| Series Name : | RSL series |
| Shape Of Pin : | flat (PCB type) |
| Software Version : | EIME v5.7.0.4 |
| Status Led : | without |
| Sustainable Packaging : | No |
| Test Levels : | level A group mounting |
| Total Lifecycle Carbon Footprint : | 2 kg CO2 eq. |
| Database Version : | 2018-09 |
| Data Source : | extrapolated product |

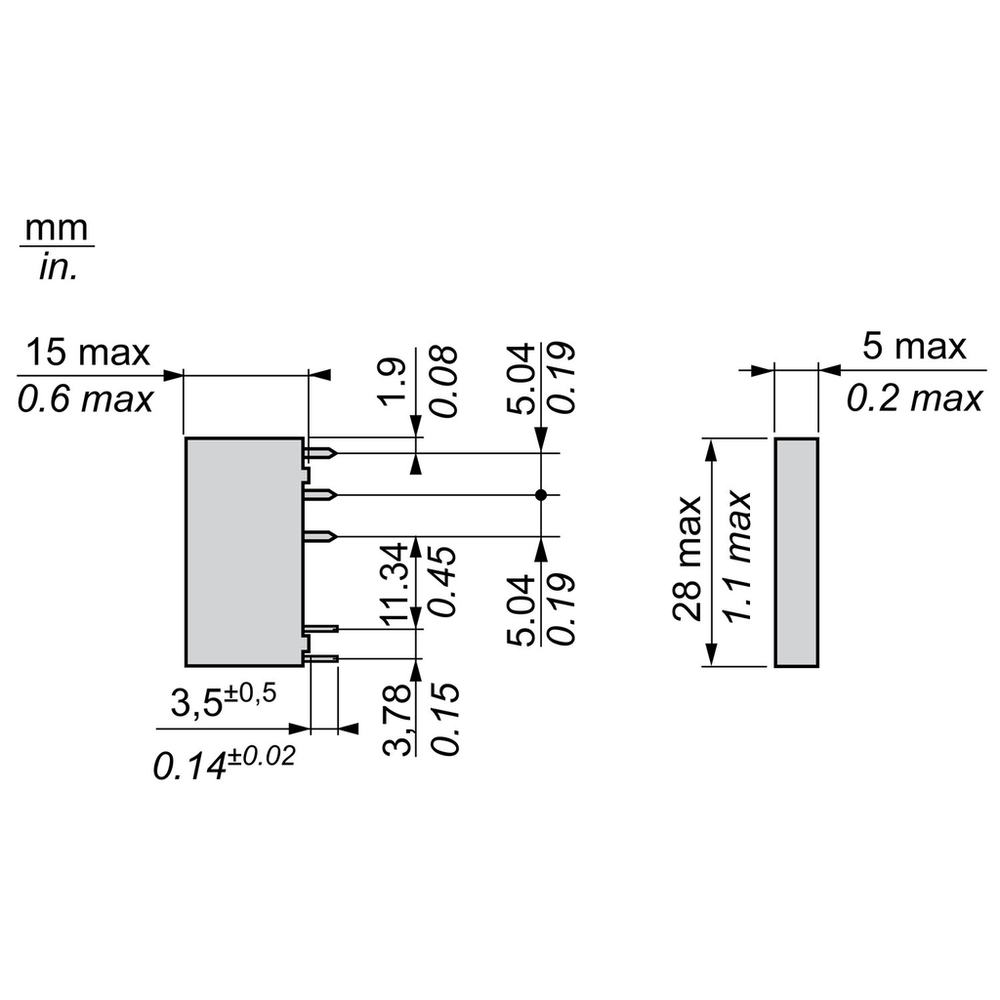

| Height Nominal : | 28 mm |
| Width Nominal : | 5 mm |
| Nbr. Of Units In Pkg. : | 1 |
| Customs Code : | 8536410020 |
| Ithe Conventional Enclosed Thermal Current : | 6 A -40-55 °C |
| Drop Out Voltage Threshold : | >= 0.05 Uc>= 0.05 Uc |
| Warranty In Months : | 18 |
| Functional Unit Description : | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards. |
| Functional Unit Quantity : | 1 |
| Functional Unit Unit : | unité (unit) |
| Reference Lifetime In Y : | 20 |
| Recyclability Potential In % : | 70 |
