Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Item ID #8911DPSG42V09
Schneider Electric
Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Item ID #8911DPSG42V09Starter, Definite Purpose, nonreversing, 40A, 2 pole, 1 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Specifications
See all specifications| China Rohs Regulation : | Product out of China RoHS scope. Substance declaration for your information |
| Rohs Exemption Information : | Yes |
| Mercury Free : | Yes |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

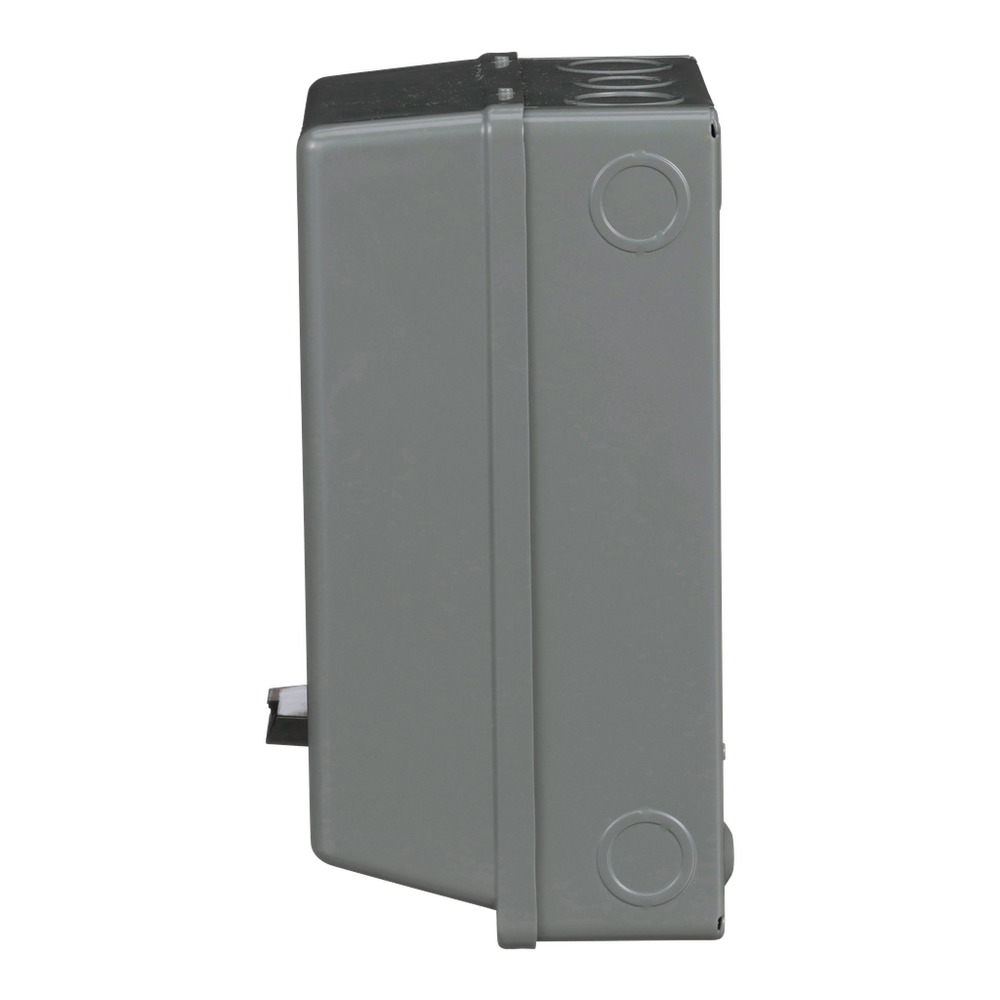

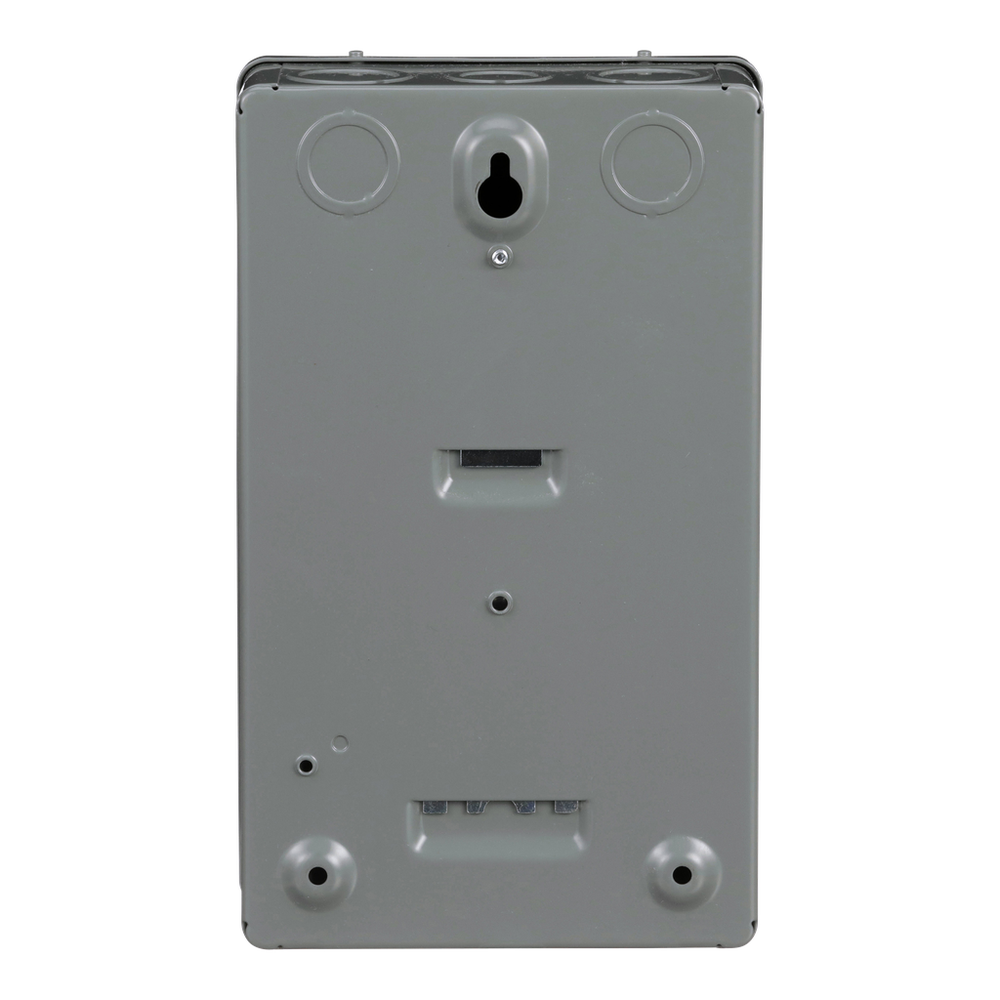

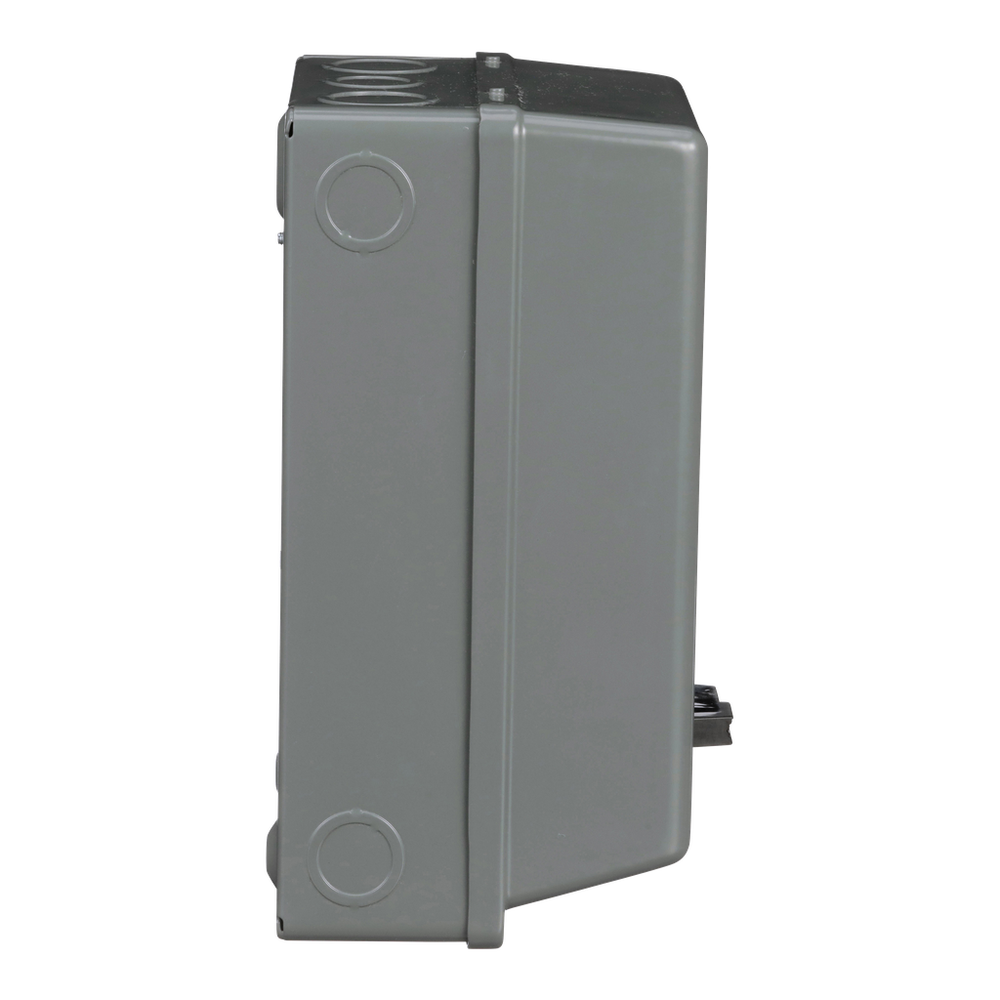

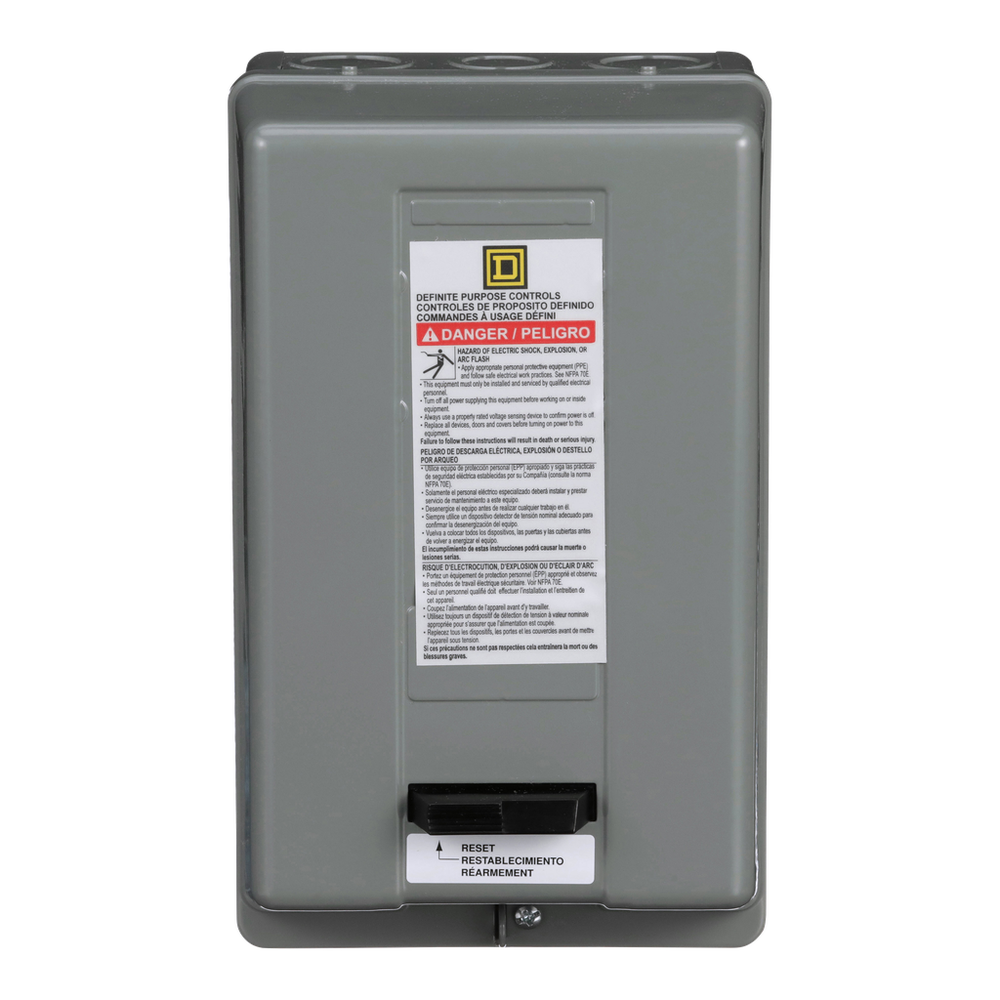

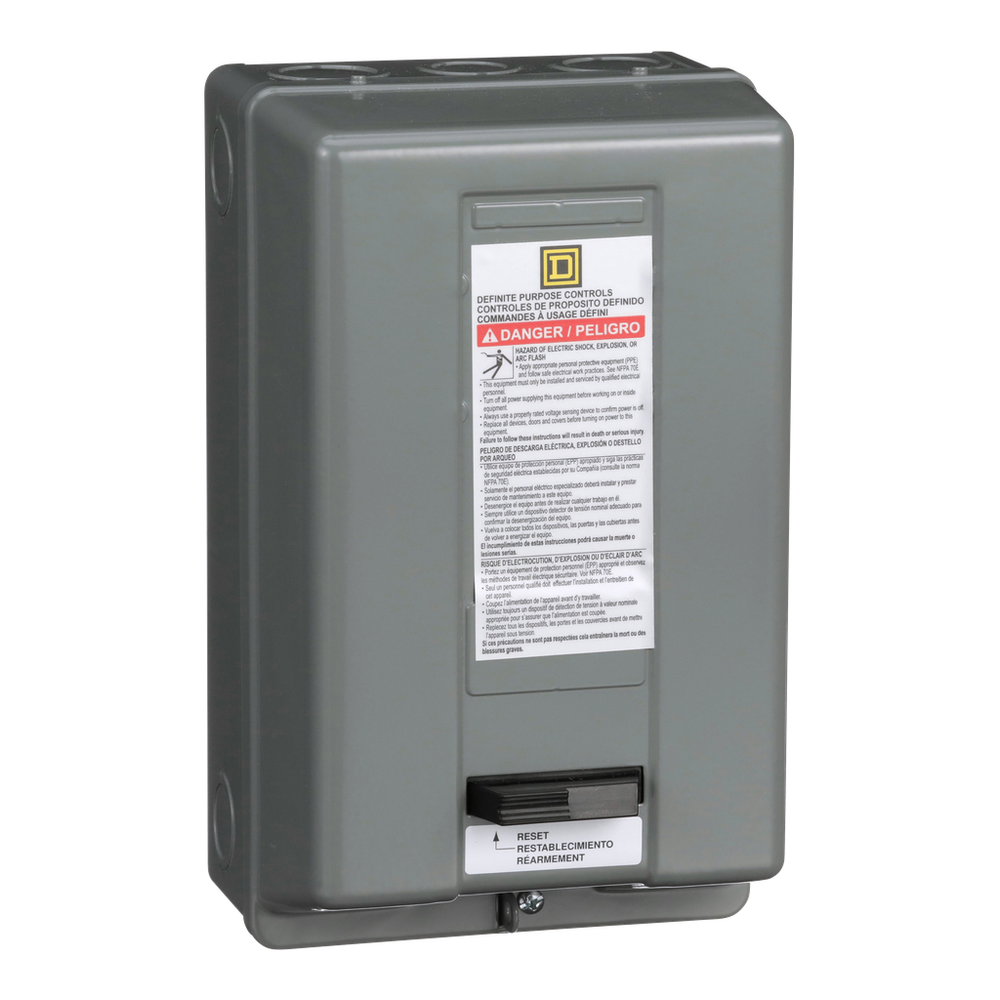

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 8.50 inches tall, 4.84 inches wide and 4.02 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Recommended tools
Offer Sustainability
| China Rohs Regulation : | Product out of China RoHS scope. Substance declaration for your information |
| Rohs Exemption Information : | Yes |
| Mercury Free : | Yes |
