Inductive proximity sensors XS, inductive sensor XS1 M5, L28mm, brass, Sn1mm, 5..24VDC, cable 2m
Item ID #XS1N05NB310
Telemecanique Sensors
Inductive proximity sensors XS, inductive sensor XS1 M5, L28mm, brass, Sn1mm, 5..24VDC, cable 2m
Item ID #XS1N05NB310Inductive proximity sensors XS, inductive sensor XS1 M5, L28mm, brass, Sn1mm, 5..24VDC, cable 2m
Specifications
See all specifications| Product Certifications : | CSA || UL |
| Ambient Air Temperature For Operation : | -25-70 °C |
| Vibration Resistance : | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
Available quantity000
Your price
$0.00 / Each
Add to template
Product Description

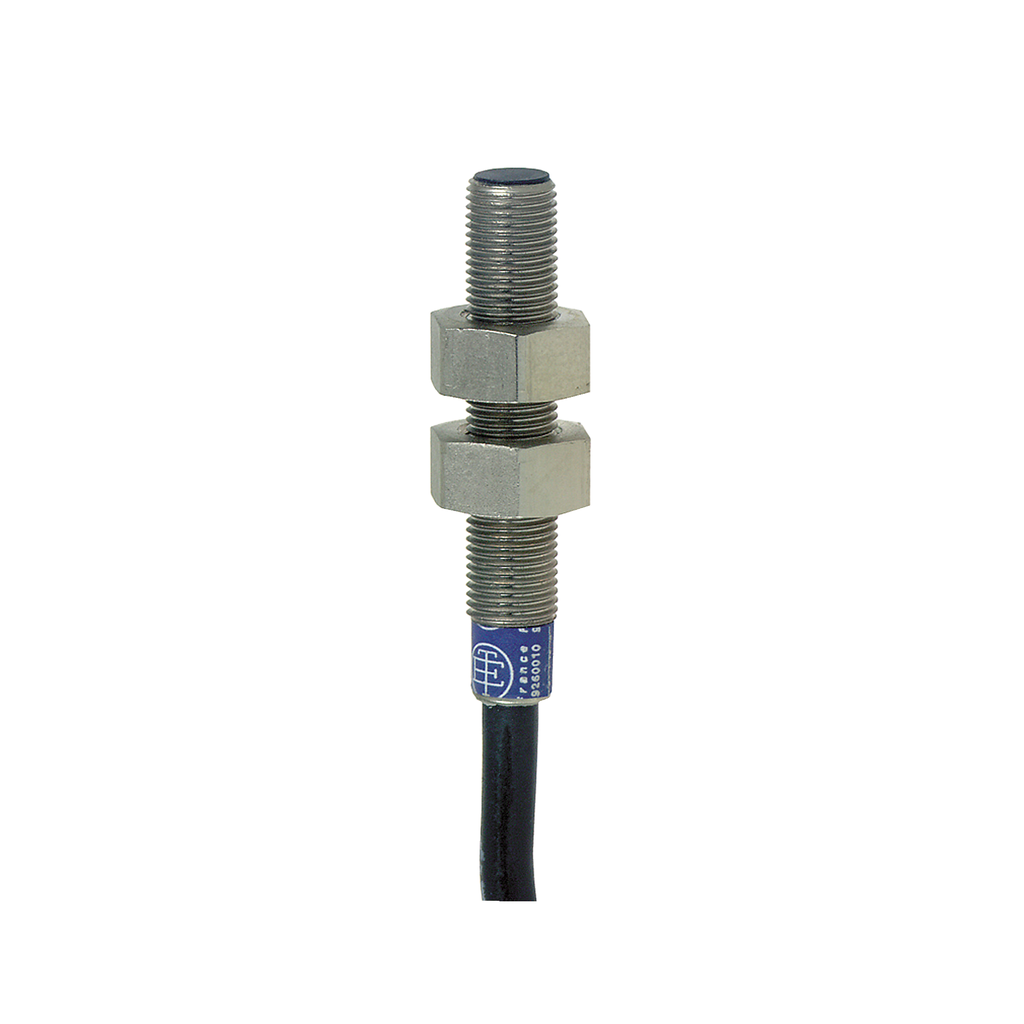

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a miniature cylindrical, flush mountable sensor. Diameter 5mm, threaded M5 x 0.5. It features a brass case and a 2m long cable. It has a sensing distance of 1mm Three-wire, DC supply, 5V to 24V, NC function, NPN solid-state output .
Recommended tools
Environment
| Product Certifications : | CSA || UL |
| Ambient Air Temperature For Operation : | -25-70 °C |
| Vibration Resistance : | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
