ZCKJ1H7 | Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT | Tradelco

Description
Resources
Specifications

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT

Item ID #ZCKJ1H7

Telemecanique Sensors

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT

Name: Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
Brand: Telemecanique Sensors
SKU: ZCKJ1H7
Price: 104.00 CAD
Availability: InStock

Item ID #ZCKJ1H7

Specifications

See all specifications

Ambient Air Temperature For Operation :	10-120 °C high temperature
Ik Degree Of Protection :	IK07
Ambient Air Temperature For Storage :	10-120 °C

Limit Switches OsiSense XC

EZ Selector

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

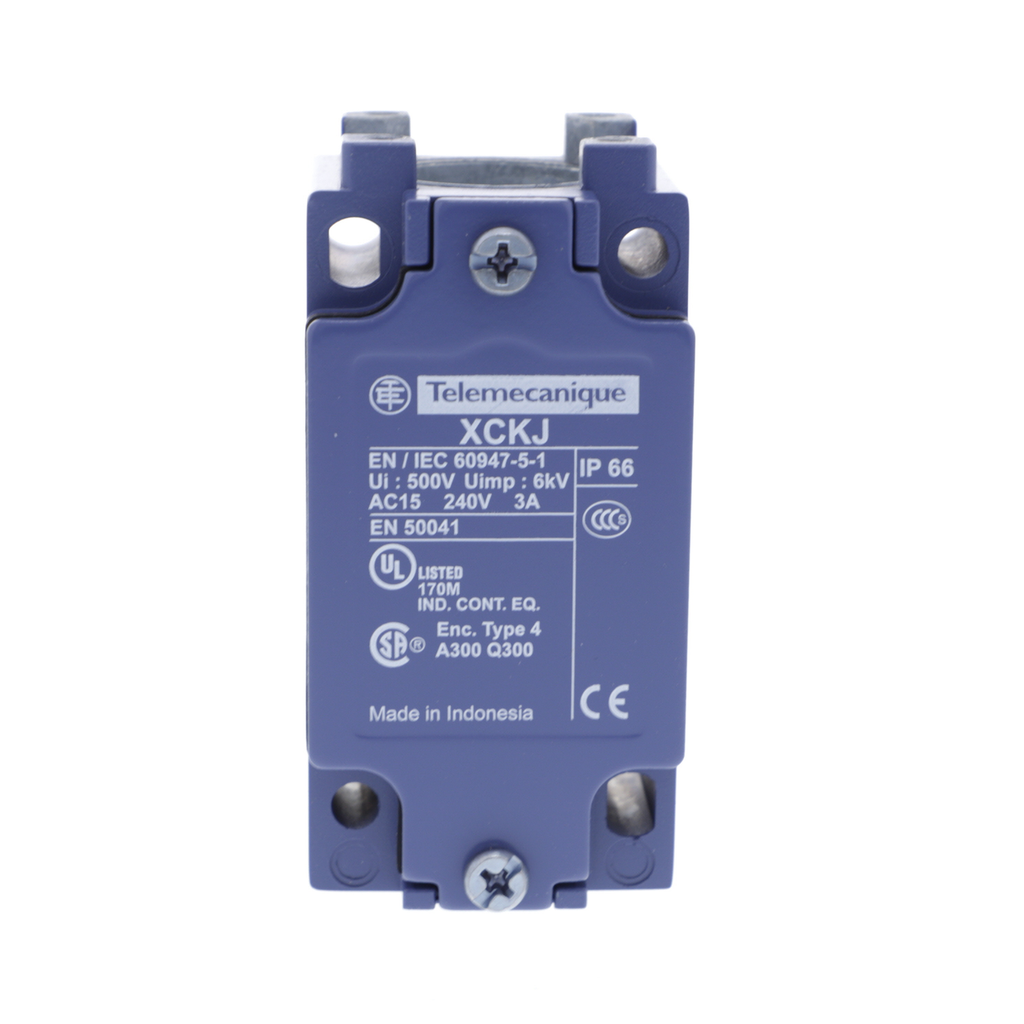

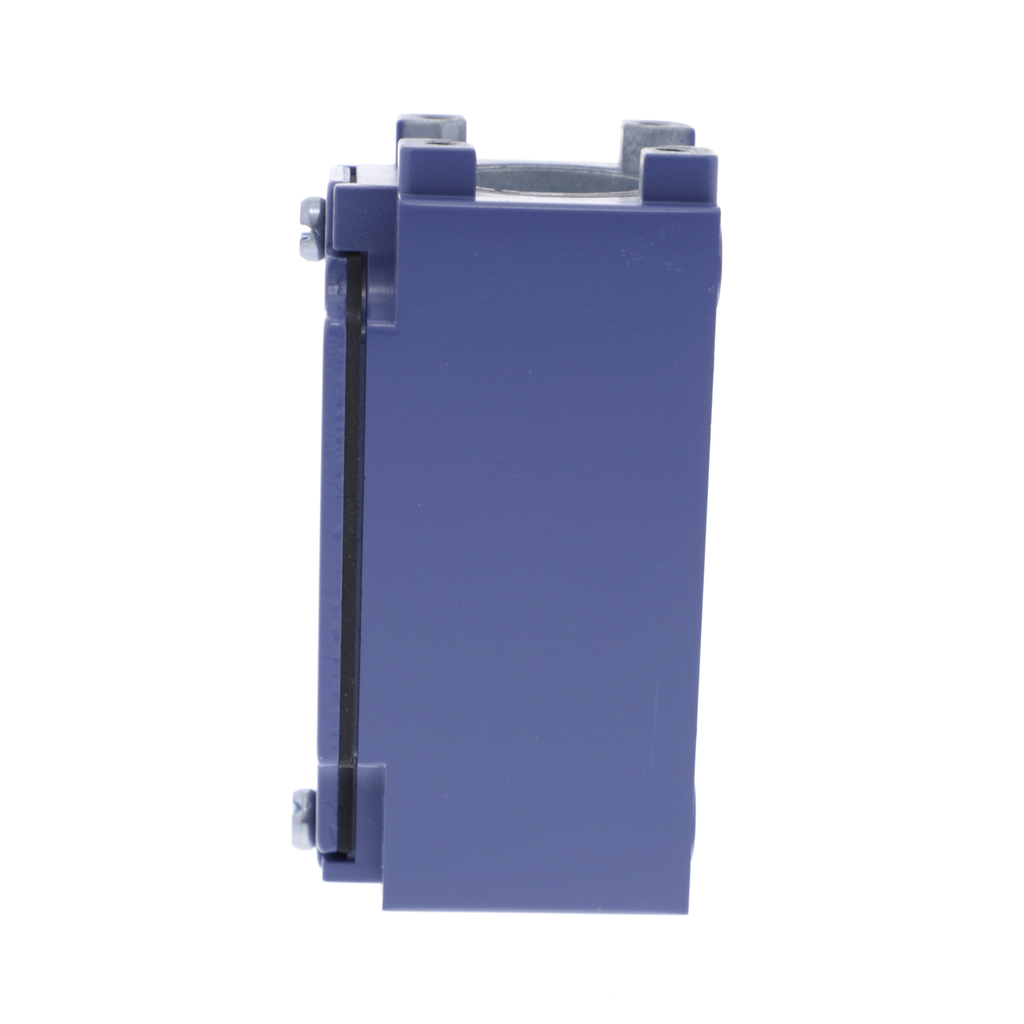

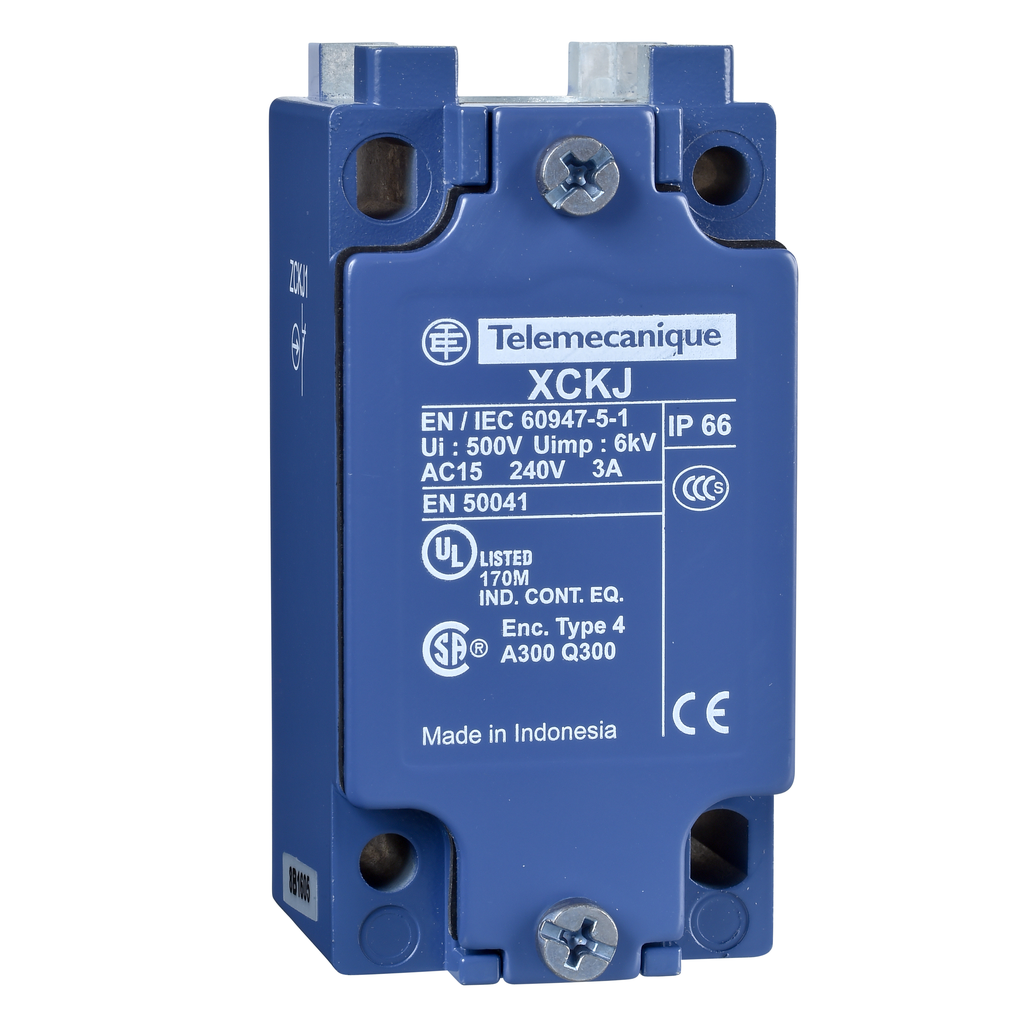

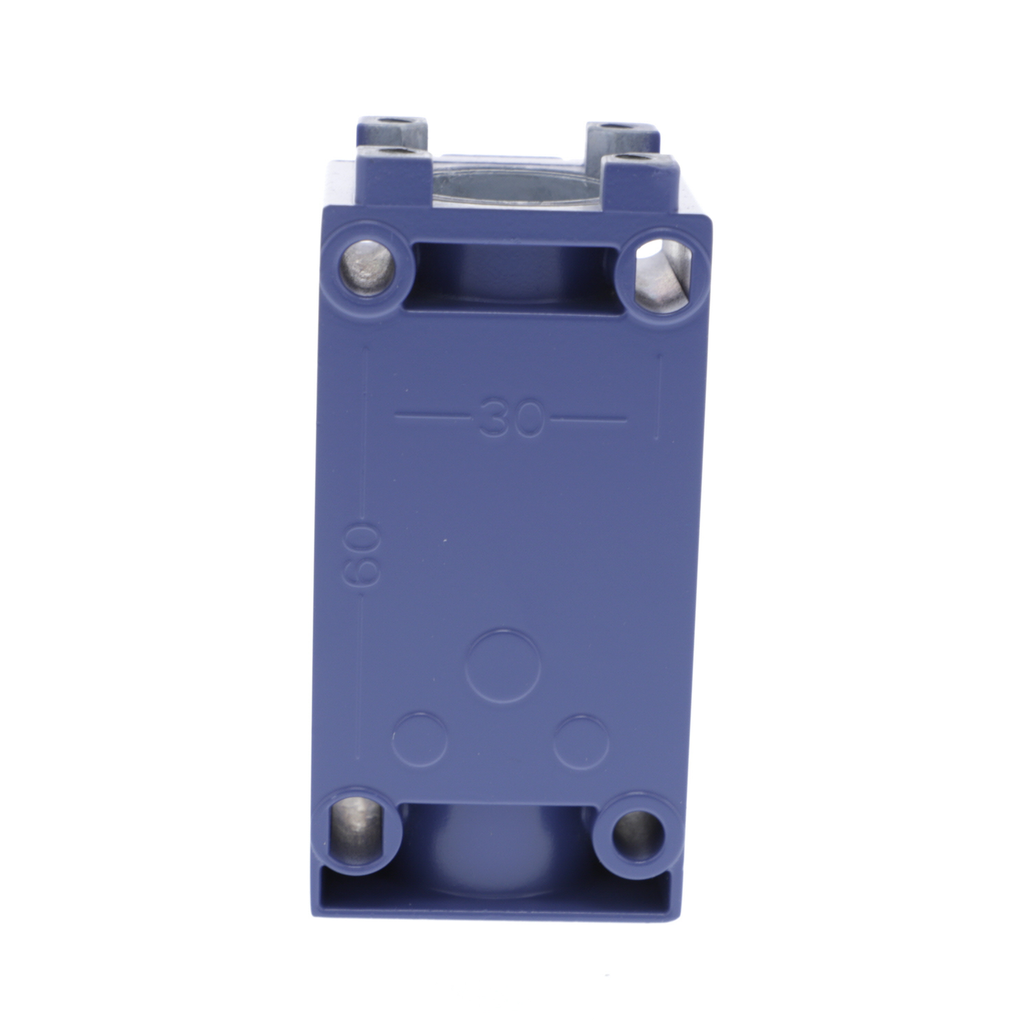

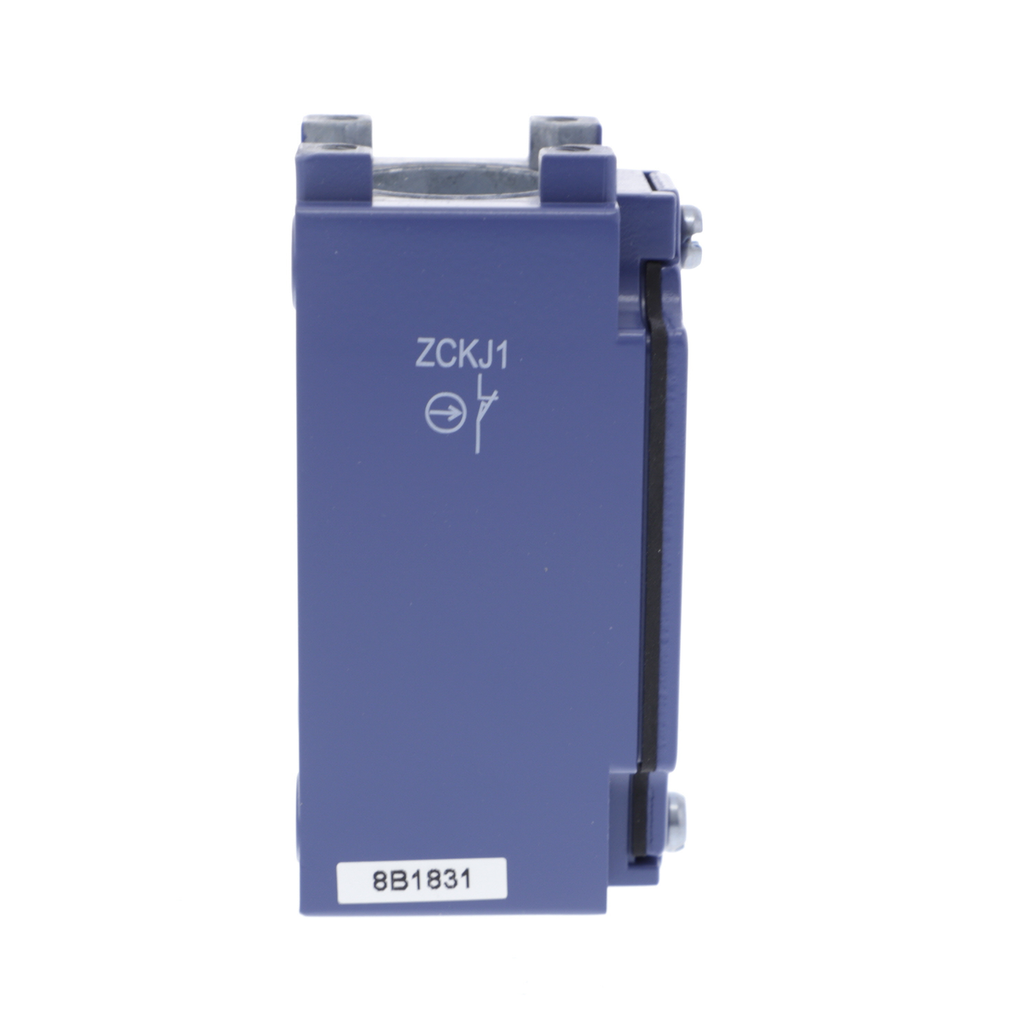

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Recommended tools

Environment


Ambient Air Temperature For Operation :	10-120 °C high temperature
Ik Degree Of Protection :	IK07
Ambient Air Temperature For Storage :	10-120 °C
Environmental Characteristic :	high temperature
Ip Degree Of Protection :	IP66

Available0

Your price

$0.00

Offer Sustainability


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP110614EN
Sustainable Offer Status :	Green Premium product
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)

Complementary


Height :	84-84 mm
Terminals Description Iso N°1 :	(23-24)NO \|\| (13-14)NO \|\| (11-12)NC \|\| (21-22)NC
Short-Circuit Protection :	10 A cartridge fuse gG
Minimum Actuation Speed :	0.01 m/min
Electrical Connection :	screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
[Ithe] Conventional Enclosed Thermal Current :	10 A
Local Display :	without
Net Weight :	0.3 kg
[Uimp] Rated Impulse Withstand Voltage :	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
Electrical Durability :	5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage :	500 V 3)IEC 60947-1 contact block \|\| 300 VCSA C22.2 No 14 contact block \|\| 300 VUL 508 contact block
Positive Opening :	with
[Ie] Rated Operational Current :	3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Width :	43 mm
Depth :	36 mm
Maximum Resistance Across Terminals :	0.25 mOhm IEC 60255-7 category 3

Specifications


Range Of Product :	Telemecanique Limit switches XC Standard
Contacts Material :	silver plated contacts
Associated Head :	ZCKE619 \|\| ZCKE64 \|\| ZCKE66 \|\| ZCKE67 \|\| ZCKE63 \|\| ZCKE62 \|\| ZCKE23 \|\| ZCKE05 \|\| ZCKE629 \|\| ZCKE08 \|\| ZCKE21 \|\| ZCKE61 \|\| ZCKE06 \|\| ZCKE65
Cable Entry :	1 entry tapped for 1/2" NPT conduit
Product Or Component Type :	limit switch body
Number Of Steps :	1 1 position
Series Name :	standard format
Contacts Type And Composition :	1 NC + 1 NO
Body Type :	fixed
Contact Operation :	snap action
Body Material :	metal
Product Compatibility :	XCKJ
Device Short Name :	ZCKJ
Number Of Poles :	2
