XCSD3918N12 | Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2NC + 1 NO, 1 entry tapped 1/2" NPT | Tradelco

Description
Resources
Specifications

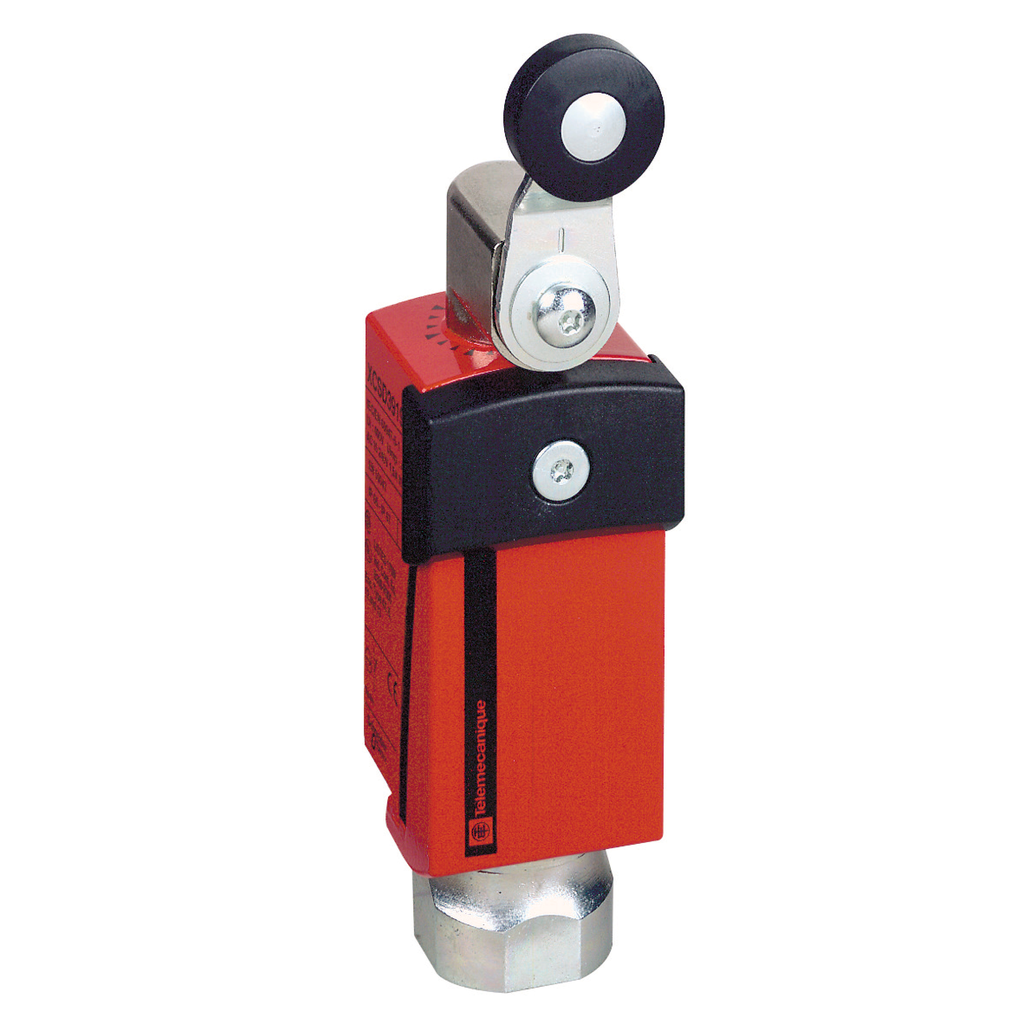

Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2NC + 1 NO, 1 entry tapped 1/2" NPT

Item ID #XCSD3918N12

Telemecanique Sensors

Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2NC + 1 NO, 1 entry tapped 1/2" NPT

Name: Safety limit switch, Telemecanique Safety switches XCS, metal, rotary lever, 2NC + 1 NO, 1 entry tapped 1/2" NPT
Brand: Telemecanique Sensors
SKU: XCSD3918N12
Price: 94.00 CAD
Availability: InStock

Item ID #XCSD3918N12

Specifications

See all specifications

Product Certifications :	CSA \|\| UL
Ik Degree Of Protection :	IK06 EN 50102
Ambient Air Temperature For Operation :	-25-70 °C

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

This XCSD Compact Safety Limit Switch has a thermoplastic roller lever, a Zamak body and head and a 1/2" NPT cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Recommended tools

Environment


Product Certifications :	CSA \|\| UL
Ik Degree Of Protection :	IK06 EN 50102
Ambient Air Temperature For Operation :	-25-70 °C
Standards :	EN/IEC 60204-1 \|\| EN/IEC 60947-5-1 \|\| UL 508 \|\| EN 1088/ISO 14119 \|\| CSA C22.2 No 14
Shock Resistance :	50 gn 11 ms IEC 60068-2-27
Vibration Resistance :	25 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of Protection :	IP66 IEC 60529 \|\| IP67 IEC 60529
Ambient Air Temperature For Storage :	-40-70 °C
Electrical Shock Protection Class :	class I NF C 20-030 \|\| class I EN/IEC 61140
Safety Reliability Data :	B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Protective Treatment :	TC
Safety Level :	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508

Available0

Your price

$0.00

Offer Sustainability


Rohs Exemption Information :	Yes
Mercury Free :	Yes
Environmental Disclosure :	ENVPEP110614EN
Sustainable Offer Status :	Green Premium product
Reach Regulation :	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive :	Pro-active compliance (Product out of EU RoHS legal scope)

Complementary


Height :	122-122 mm
Short-Circuit Protection :	6 A cartridge fuse gG (gl)
Clamping Connection Capacity :	1 x 0.34...2 x 0.75 mm²
Repeat Accuracy :	0.1 mm on tripping points, 1 million operating cycles for head with end plunger
[Ithe] Conventional Enclosed Thermal Current :	6 A
Head Material :	zamak
Net Weight :	0.255 kg
[Uimp] Rated Impulse Withstand Voltage :	4 kV EN/IEC 60947-1 \|\| 4 kV IEC 60664
Switch Actuation :	by 30° cam
[Ui] Rated Insulation Voltage :	300 VUL 508 \|\| 400 V 3)EN/IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening :	with NC contact
Positive Opening Minimum Torque :	0.25 N.m
Mechanical Durability :	10000000 cycles
Maximum Actuation Speed :	1.5 m/s
Body Material :	zamak
Electrical Connection :	terminal
Enclosure Material :	plastic
Contact Code Designation :	B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Width :	34 mm
Depth :	35 mm
Minimum Torque For Tripping :	0.1 N.m
Number Of Poles :	3
Maximum Resistance Across Terminals :	25 MOhm IEC 60255-7 category 3

Specifications


Contacts Type And Composition :	1 NC + 1 NC + 1 NO
Range Of Product :	Telemecanique Safety switches XCS
Cable Entry :	1 entry tapped 1/2" NPT
Product Or Component Type :	safety limit switch
Protection Technology :	plastic protective cover, secured by 5-lobe socket head safety screw
Component Name :	XCSD
Design :	compact
Material :	metal
Head Type :	rotary head
Contact Operation :	snap action
Type Of Operator :	thermoplastic roller lever
