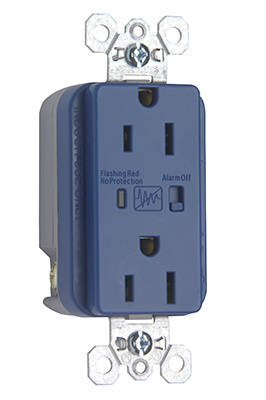

15A 125V Extra Heavy Duty Spec-Grade Surge Protective Duplex Receptacle, Blue

Item ID #5262BLSP

Pass & Seymour

15A 125V Extra Heavy Duty Spec-Grade Surge Protective Duplex Receptacle, Blue

Name: 15A 125V Extra Heavy Duty Spec-Grade Surge Protective Duplex Receptacle, Blue
Brand: Pass & Seymour
SKU: 5262BLSP
Price: 86.86 CAD
Availability: InStock

Item ID #5262BLSP

Specifications

See all specifications

Depth :	0.875 in
Height :	2.75 in
Color :	Blue

Available quantity000

Your price

$0.00 / Each

Add to template

Product Description

Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (with Audible Alarm and LED Indicator). Back and Side Wire, 15A, 125V.

Recommended tools

Specifications


Depth :	0.875 in
Height :	2.75 in
Color :	Blue
Product Line :	Pass & Seymour
Width :	1.7 in
Country of Origin :	Mexico
Amperage :	15.0 A
Voltage :	125.0 V
Number of Wires :	3.0
Standard :	cUL UL1449
Indoor/Outdoor :	Indoor
Wire Size :	14 - 10 AWG
Wall Plate Included :	No
Features :	Surge Protection
Number of Receptacles :	2.0
Outlet Type :	Straight Blade
Number of Poles :	Double Pole
Outlet Type :	Surge Protected
Application Sector :	Commercial
NEMA Configuration Code :	5-15R
Connection Location :	Back and Side
Wire Connection Type :	Screw Terminals
Warranty Type :	1-Year Limited Warranty
Environmental Conditions :	Flammability: UL94 V2
Features :	Single Piece Plated Steel Mounting Strap
Standard :	UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587)
Special Features :	Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
Standard :	ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
