At Tradelco Inc., we provide the Altivar 12 variable speed drive, a compact and intelligent solution designed to optimize the control of three-phase asynchronous motors from 0.18 to 4 kW. Developed by Schneider Electric, the Altivar 12 combines performance, energy savings, and ease of integration, perfectly meeting the needs of machine builders and system integrators.
With its Plug & Play technology, sensorless vector control (SVC), and integrated C1 EMC filter, the ATV12 ensures smooth regulation, high torque, and perfect electromagnetic compatibility.Built for reliability and durability, the Altivar 12 adapts to all applications, including pumping, conveying, ventilation, packaging, and machine tools. Its SoMove software simplifies configuration, diagnostics, and maintenance, saving both time and energy while maximizing efficiency

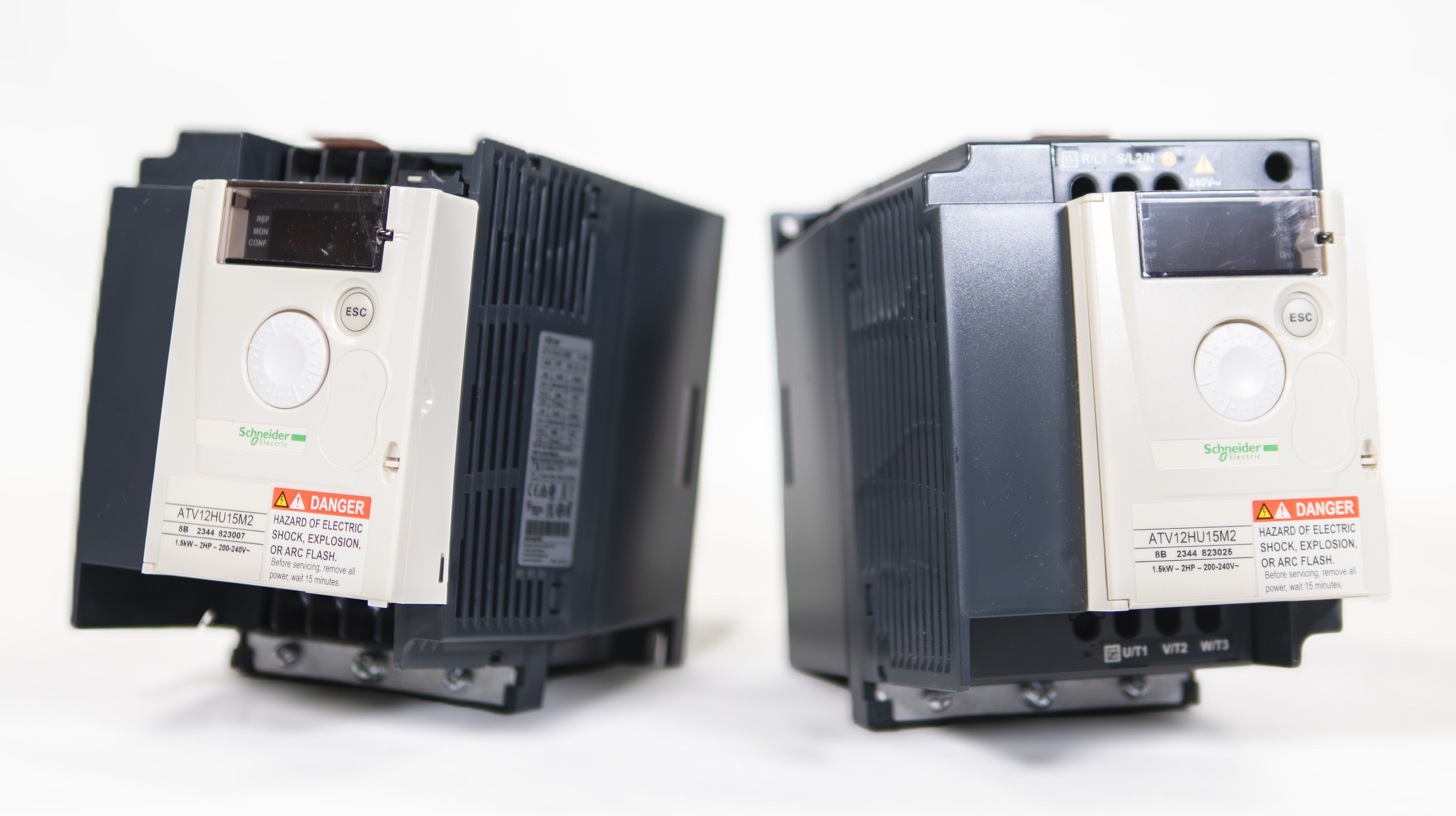

The Altivar 12 range from Schneider Electric includes compact industrial drives for controlling three-phase asynchronous motors (200–240 V), covering a power range from 0.18 kW to 4 kW (0.25 to 5 HP).
Designed for simple industrial machines, OEM applications, and pumping or ventilation (HVAC) systems, these drives combine precision, robustness, and easy integration.
Thanks to their compact size, robust design, and intuitive programming, Altivar 12 drives provide a cost-effective and high-performance solution for most industrial and commercial installations.

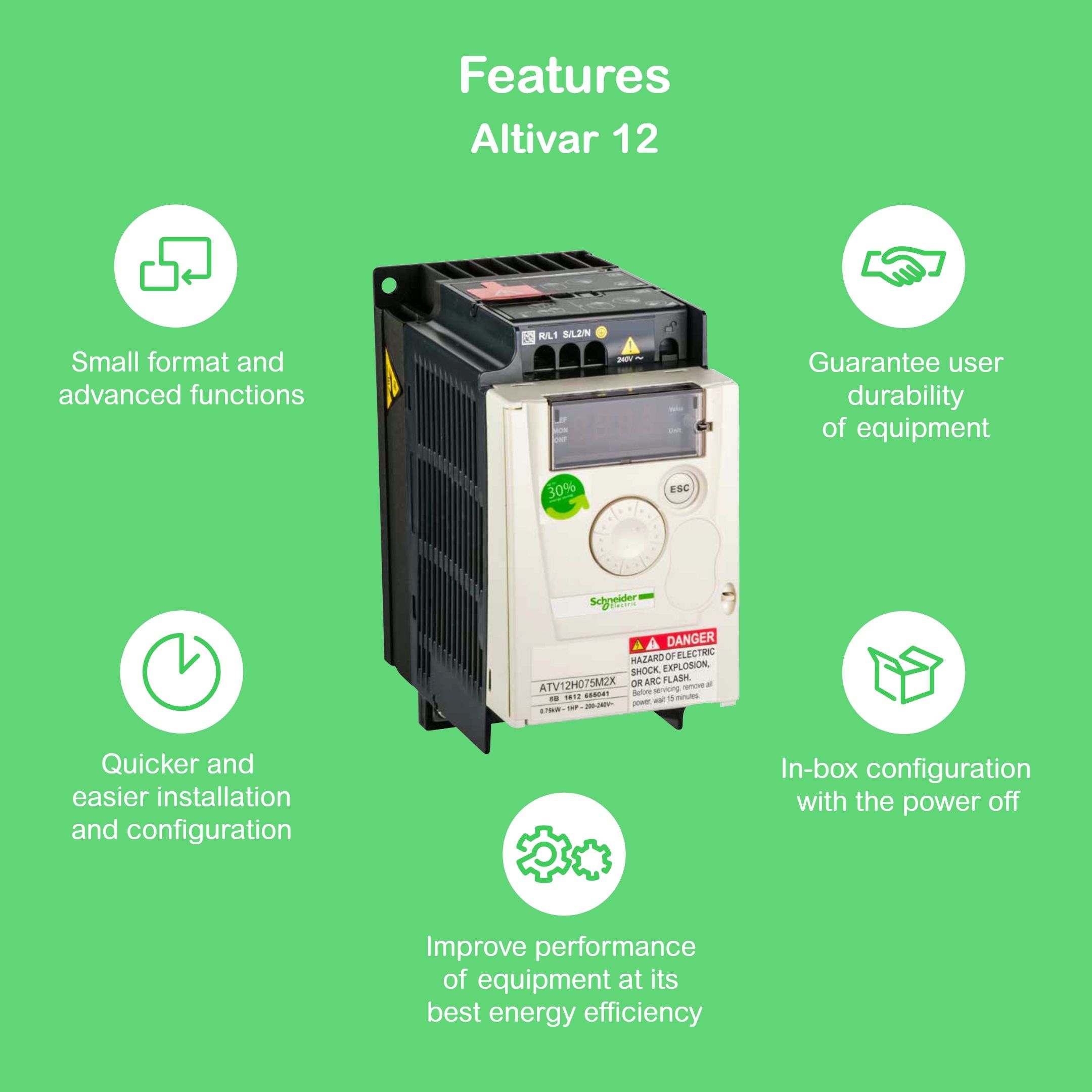

Competitive Advantages
The Altivar 12 is compatible with:
Stop wasting time comparing! Click this button and discover the tool that guides you directly to the product that's right for you. Fast, convenient, and efficient.
*At Tradelco Inc., we distribute the full range of Schneider Electric variable speed drives, including the Altivar ATV12, Altivar ATV320, Altivar ATV630, and Altivar ATV930, supported by local technical expertise, customized wiring solutions, and integration services for all your industrial automation applications.
| Category | Technical and Commercial Details |
|---|---|
Category Full Model Name | Technical and Commercial Details ATV12 (Altivar 12) – variable speed drive for three-phase asynchronous motors, Schneider Electric range. |
Category Model Code Meaning | Technical and Commercial Details ATV12: Altivar 12 Series |
Category Motor Power Range | Technical and Commercial Details From 0.18 kW (0.25 HP) to 4 kW (5 HP) depending on version. Three input voltages: 100–120 V, 200–240 V single-phase, 200–240 V three-phase. |
Category Motor Control Type | Technical and Commercial Details Standard U/F control Sensorless vector control (SVC) Quadratic profile for pumps and fans Integrated PID for automatic regulation |
Category Electrical Characteristics | Technical and Commercial Details Output frequency: 0.1 to 400 Hz Overload torque: up to 170% of rated torque Integrated EMC filter (category C1 or C2 depending on model) Air cooling, automatic fan (removable) |

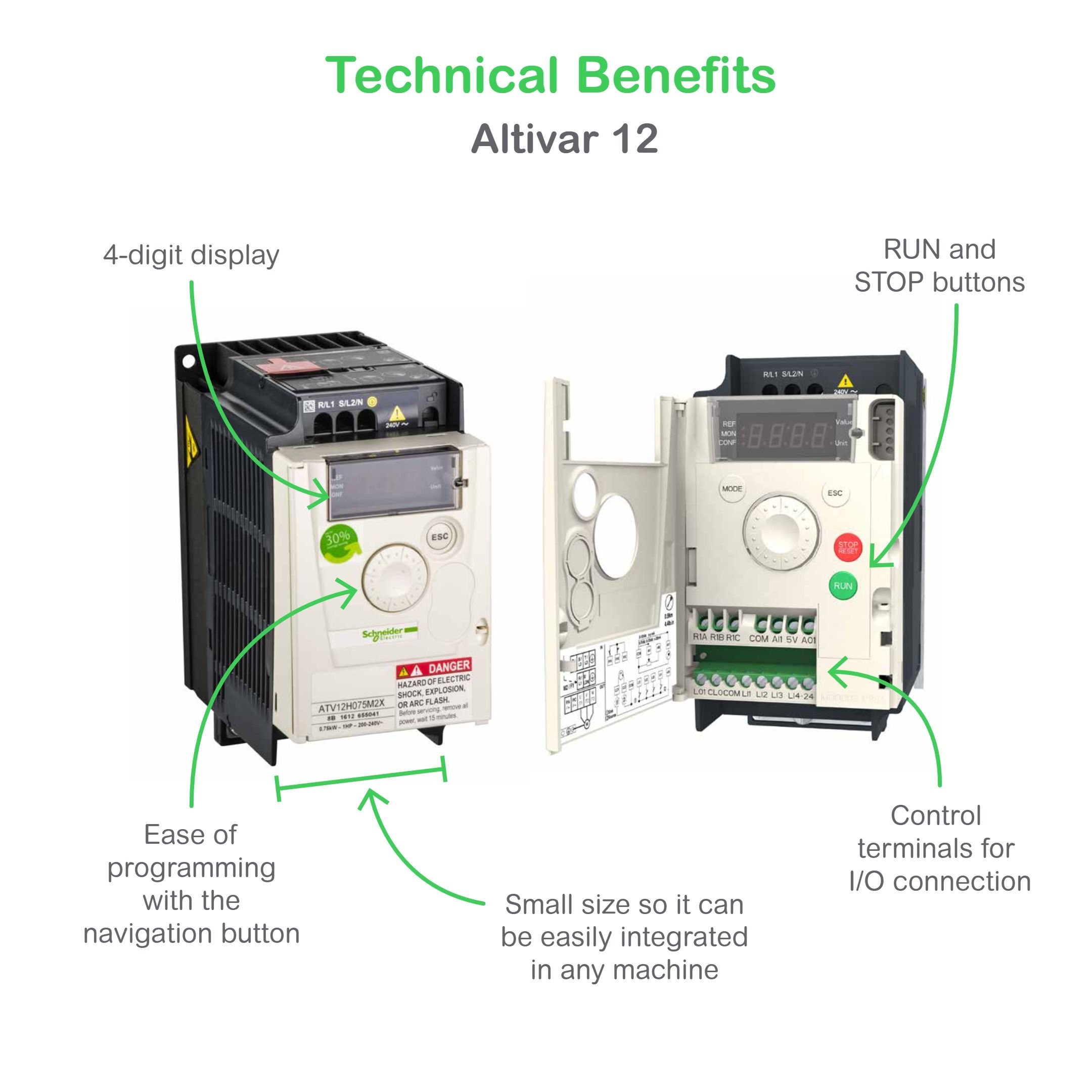

Category Interfaces and Communication | Technical and Commercial Details Integrated Modbus RTU port (RS485 RJ45) Compatible with SoMove (free PC software) Tools: Simple Loader, Multi-Loader, optional Bluetooth 4-digit LED display with navigation button |
Category Programmable Functions | Technical and Commercial Details 8 preset speeds Adjustable acceleration and deceleration (S or U ramp) Freewheel stop, fast stop, reverse rotation Overload, underload, overcurrent detection Local / remote mode |
Category Environment and Robustness | Technical and Commercial Details Operating temperature: –10 °C to +50 °C (up to +60 °C with derating) Coated boards for harsh environments (3C3/3S2) Component lifetime: 10 years (standard use) Compliant with RoHS, WEEE, CE marking, UL, CSA |
Category Typical Applications | Technical and Commercial Details Pumps, fans, mixers, conveyors Packaging machines, light lifting equipment Domestic applications (pools, spas, machine tools) Medical and agricultural equipment |
Category Configuration Tools | Technical and Commercial Details SoMove for PC (full parameter setting and diagnostics) Multi-Loader: fast transfer to multiple drives (without power supply) Simple Loader: duplication between two powered drives |
Category Compatible Accessories | Technical and Commercial Details
Additional EMC filters VW3A9523 to VW3A9525 DIN rail mounting kits VW3A9804 / 9805 +15/+24 V converter module VW3A9317 Remote terminal IP54 / IP65 |
Category Customer Benefits | Technical and Commercial Details
Simple and fast installation (Plug & Play) Configuration possible without power Increased reliability and low maintenance Average energy savings: up to 30% Compact design ideal for OEMs and integrators |
| Drive | Target Use | Voltage Range | Power / Capacity | Main Functions | Connectivity / Interface | Typical Applications |
|---|---|---|---|---|---|---|
Drive | Target Use Small machines, simple equipment | Voltage Range 100–240 V single/three-phase | Power / Capacity
0.18 to 4 kW (0.25 to 5 HP) | Main Functions Sensorless vector control, built-in PID | Connectivity / Interface Integrated Modbus, LED HMI | Typical Applications Pumps, fans, light conveyors |
Drive | Target Use OEM machines, moderate automation | Voltage Range 200–240 V single / 200–600 V three-phase | Power / Capacity 0.18 to 15 kW (0.25 to 20 HP) | Main Functions Vector control, integrated safety | Connectivity / Interface Modbus, CANopen, Ethernet | Typical Applications Conveyors, packaging, OEM systems |
Drive | Target Use Variable torque process | Voltage Range 200–690 V three-phase | Power / Capacity 0.75 to 800 kW (1 to 1,070 HP) | Main Functions Optimized for pumps/fans, diagnostics | Connectivity / Interface Ethernet TCP/IP, Modbus TCP | Typical Applications HVAC, pumping, water treatment |
Drive | Target Use Heavy-duty constant torque | Voltage Range 380–690 V three-phase | Power / Capacity 0.75 to 1,500 kW (1 to 2,000 HP) | Main Functions Advanced control, IoT, lifting, braking | Connectivity / Interface Ethernet/IP, Modbus, Web server | Typical Applications Cranes, hoisting, heavy industry |
