The Altivar Machine ATV320 variable frequency drive from Schneider Electric is the modern, robust, and connected solution for controlling three-phase asynchronous and synchronous motors. Designed for machine builders (OEMs) and industrial integrators, it successfully succeeds the Altivar ATV12 by offering more power, increased safety, and improved connectivity.
Schneider Electric's Altivar Machine ATV320 variable frequency drives offer a compact, high-performance, and connected solution for controlling three-phase asynchronous and synchronous motors from 0.18 to 15 kW.
Ideal for industrial machines, OEMs, pumping, ventilation, hoisting, and packaging systems, they combine robustness, precision, and ease integration.
Thanks to their compact or book format, protection up to IP66, and compatibility with major industrial networks (Modbus, CANopen, Ethernet/IP, PROFINET, EtherCAT, etc.), the ATV320 drives integrate seamlessly into EcoStruxure™ Machine architectures.
Equipped with advanced safety features (STO, SS1, SLS, SMS, GDL – up to SIL3/PLe) and programmable ATV Logic functions, they ensure optimal productivity, reliability, and energy efficiency.

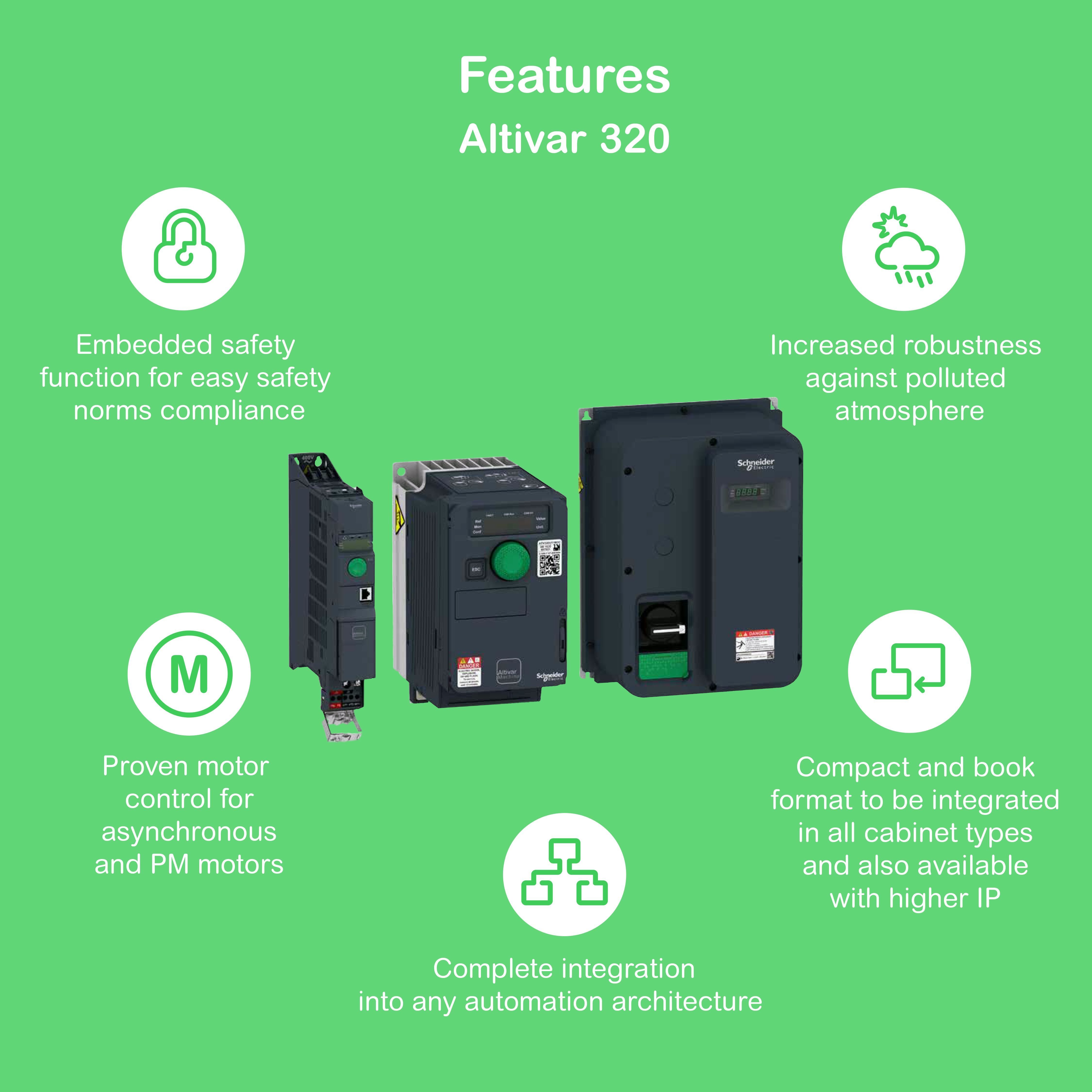

ATV320C (Compact)
ATV320B (Book)
| ATV320 Sub-range | Format | Power Range | Key Strengths | Typical Applications |
|---|---|---|---|---|
ATV320 Sub-range ATV320C (Compact) | Format Compact housing, reduced depth | Power Range 0.18 to 7.5 kW | Key Strengths Space saving, wall or cabinet mounting | Typical Applications Conveyors, pumps, small OEM machines |
ATV320 Sub-range ATV320B (Book) | Format “Book” format, side-by-side mounting | Power Range 0.18 to 22 kW | Key Strengths High density, cabinet integration | Typical Applications Hoisting, textile, packaging, material handling |
Performance and Robustness
Universal Connectivity
Integrated safety
Sustainability and energy efficiency
The Altivar Machine ATV320 is compatible with a wide variety of machines and processes:
Competitive advantages
The Altivar 320 is compatible with:
Braking resistors, line coils (chokes) and motor coils / Additional EMC filters (C2/C3) / Ethernet, Profibus, CANopen, etc. communication modules / Remote or local graphic HMI / Mounting kits and adapters for cabinet or surface mounting /Speed monitoring modules
Stop wasting time comparing! Click this button and discover the tool that guides you directly to the product that's right for you. Fast, convenient, and efficient.
*At Tradelco Inc., we distribute the full range of Schneider Electric variable speed drives, including the Altivar ATV12, Altivar ATV320, Altivar ATV630, and Altivar ATV930, supported by local technical expertise, customized wiring solutions, and integration services for all your industrial automation applications.
There are 5 built-in safety features that are one of the major advantages of the Altivar Machine ATV320 variable frequency drive. These features protect operators, equipment, and machines, while also reducing costs (since they do not require external safety modules).
*Fully configurable via the SoMove software.
The machine decelerates safely before coming to a complete stop.
Combines safety and mechanical protection of the engine.
💡 Example: rapid stopping of a saw or grinder.
The motor is put into "zero torque," eliminating all driving force. Prevents accidental restart during intervention or maintenance.
💡 Example: opening a protective door on a conveyor.
Allows for reduced speed operation during adjustments, positioning, or testing. If the speed limit is exceeded, the drive automatically performs a slow shutdown (STO).
💡 Example: “slow maintenance” mode on a packaging line.
Prevents a hood or door from being opened until the machine has completely stopped.
Unlocking is only permitted after a verified shutdown.
💡 Example: Locked door on a rotating press or winder.
Continuously monitors motor speed to prevent dangerous overspeeding.
Activates a safe shutdown as soon as a critical threshold is exceeded.
💡 Example: protecting an industrial mixer against overspeeding.
*Get a quick quote today or benefit from our technical expertise to select the Altivar Machine ATV320 drive best suited to your needs.
| Category | Technical and Commercial Details |
|---|---|
Category Full Model Name | Technical and Commercial Details Altivar Machine ATV320 – Variable speed drives for asynchronous and synchronous motors (Schneider Electric). |
Category Model Code Meaning | Technical and Commercial Details |
Category Motor Power Range | Technical and Commercial Details From 0.18 kW (0.25 HP) to 15 kW (20 HP) depending on voltage and version (IP20, IP65, or IP66). |
Category Power Supply Options | Technical and Commercial Details Single-phase 200–240 V (0.18 to 2.2 kW) Three-phase 200–240 V (0.18 to 15 kW) Three-phase 380–500 V (0.37 to 15 kW) Three-phase 525–600 V (0.75 to 15 kW) |
Category Motor Control Types | Technical and Commercial Details U/F control (2-point, 5-point, quadratic, energy-saving) Sensorless vector control (asynchronous and synchronous motors) Flux vector control with ±10% slip accuracy Torque or speed control with current limitation |
Category Electrical Characteristics | Technical and Commercial Details Output frequency: 0.1 to 599 Hz Overload capacity: up to 200% of rated torque Built-in EMC filter (C2 or C3 category depending on model) Operating temperature: –10 °C to +50 °C (up to +60 °C with derating) |
Category Interfaces and Communication | Technical and Commercial Details Integrated ports: Modbus RTU and CANopen (RJ45)Optional: Modbus TCP, Ethernet/IP, Profibus DP, Profinet, EtherCAT, Powerlink, DeviceNetOptional Wi-Fi module for remote monitoring and diagnostics |
Category Programmable and Safety Functions | Technical and Commercial Details ATV Logic: up to 50 function blocks for simple automation Integrated safety: STO, SS1, SLS, SMS, GDL (up to SIL3 / PLe) PID regulator, up to 16 preset speeds Custom monitoring “MyMenu” and configuration cloning (even when powered off) |
Category Environmental Design | Technical and Commercial Details Tropicalized boards (3C3 / 3S2) Operation up to 60 °C with derating Resistance to vibration and dust Green Premium™ certified, RoHS & REACH compliant |
Category Typical Applications | Technical and Commercial Details Material handling, conveyors, packaging machines Pumping, ventilation, HVAC systems Lifting, textile, woodworking, machining General and automated industrial machinery |
Category Configuration Tools | Technical and Commercial Details SoMove software and DTM interface Full integration into EcoStruxure Machine Simple Loader and Multi-Loader tools (configuration transfer) Optional remote graphic terminal |
Category Certifications and Standards | Technical and Commercial Details EN 61800-5-1 / -3 / -2, EN ISO 13849-1 (PLe) UL, CSA, UKCA, CE, EAC, GOST, KC, ATEX Functional safety up to SIL3 |
Category Customer Benefits | Technical and Commercial Details Energy savings up to 30% Fast installation and commissioning Upgradeable firmware, retrofit compatible EcoStruxure connectivity and predictive maintenance |
| Drive | Target Use | Voltage Range | Power / Capacity | Main Functions | Connectivity / Interface | Typical Applications |
|---|---|---|---|---|---|---|
Drive | Target Use Small machines, simple equipment | Voltage Range 100–240 V single/three-phase | Power / Capacity 0.18 to 4 kW (0.25 to 5 HP) | Main Functions Sensorless vector control, built-in PID | Connectivity / Interface Integrated Modbus, LED HMI | Typical Applications Pumps, fans, light conveyors |
Drive | Target Use OEM machines, moderate automation | Voltage Range 200–240 V single / 200–600 V three-phase | Power / Capacity 0.18 to 15 kW (0.25 to 20 HP) | Main Functions Vector control, integrated safety | Connectivity / Interface Modbus, CANopen, Ethernet | Typical Applications Conveyors, packaging, OEM systems |
Drive | Target Use Variable torque process | Voltage Range 200–690 V three-phase | Power / Capacity 0.75 to 800 kW (1 to 1,070 HP) | Main Functions Optimized for pumps/fans, diagnostics | Connectivity / Interface Ethernet TCP/IP, Modbus TCP | Typical Applications HVAC, pumping, water treatment |
Drive | Target Use Heavy-duty constant torque | Voltage Range 380–690 V three-phase | Power / Capacity 0.75 to 1,500 kW (1 to 2,000 HP) | Main Functions Advanced control, IoT, lifting, braking | Connectivity / Interface Ethernet/IP, Modbus, Web server | Typical Applications Cranes, hoisting, heavy industry |
